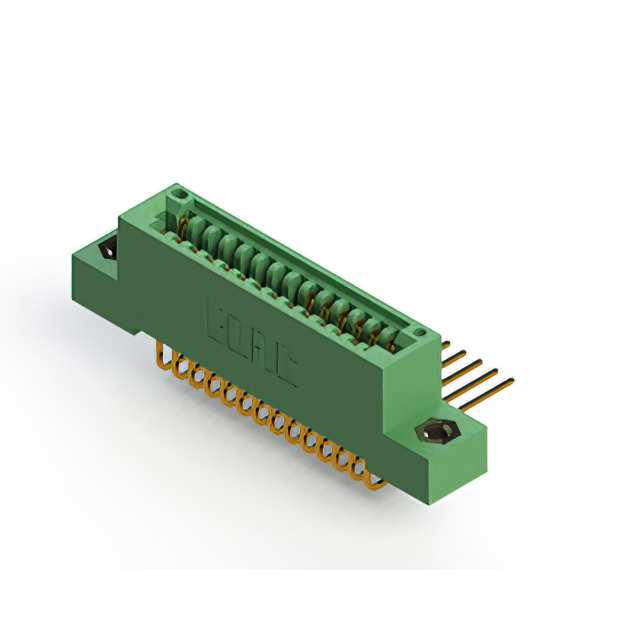

845-028-559-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 28POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-028-559-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 28POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-028-559-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-028 Series
...
| Part | Gender | Contact Finish | Read Out | Mounting Type | Number of Rows | Number of Positions | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Termination Rows | Flange Feature | Flange Feature | Color | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Gold | Single | Through Hole | 1 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 1 | 3.25 mm | 0.128 in | Green | Cantilever | ||||
EDAC Inc. | Female | Gold | Single | Through Hole | 1 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | 1 | Green | Cantilever | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Female | Gold | Dual | Board Edge Straddle Mount | 2 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 2 | Green | Cantilever | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Card Extender | ||
EDAC Inc. | Female | Gold | Dual | Through Hole | 2 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 2 | 3.25 mm | 0.128 in | Green | Cantilever | Side Mount Opening Unthreaded | |||
EDAC Inc. | Female | Gold | Dual | Through Hole Right Angle | 2 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 2 | Green | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Female | Gold | Single | Through Hole | 1 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 1 | Green | Cantilever | ||||||
EDAC Inc. | Female | Gold | Dual | Through Hole | 2 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | 2 | Green | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Female | Gold | Dual | Through Hole | 2 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | 2 | Green | Cantilever | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Female | Gold | Dual | Through Hole Right Angle | 2 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 2 | Green | Cantilever | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Female | Gold | Dual | Through Hole Right Angle | 2 | 28 | Copper Alloy | 125 °C | -40 °C | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 14 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 2 | 3.25 mm | 0.128 in | Green | Cantilever | Side Mount Opening Unthreaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 80.80 | |
Description
General part information
845-028 Series
28 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
