LP8758A1B0YFFR

Active

Texas Instruments

FOUR-PHASE, SINGLE 16A OUTPUT DC-DC STEP-DOWN CONVERTER

Find alt

Alpha

LP8758A1B0YFFR

Active

Texas Instruments

FOUR-PHASE, SINGLE 16A OUTPUT DC-DC STEP-DOWN CONVERTER

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

LP8758 Series

The LP8758 is designed to meet the power management requirements of the latest application processors in mobile phones and similar portable applications. The device contains four step-down DC/DC converter cores, which are bundled together in a single 4-phase buck converter. The device is controlled by an I2C-compatible serial interface.

The automatic PWM-PFM (AUTO mode) operation, together with the automatic phase adding/shedding, maximizes efficiency over a wide output-current range. The LP8758 supports remote differential voltage sensing to compensate IR drop between the regulator output and the point-of-load, thus improving the accuracy of the output voltage.

The LP8758 supports programmable start-up and shutdown delays synchronized to Enable signal.

Technical Specifications

Parameters and characteristics for this part

Specification	LP8758A1B0YFFR

Current - Output	16 A
Frequency - Switching	3.3 MHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Programmable
Package / Case	DSBGA, 35-UFBGA
Package Length	2.88 mm
Package Name	35-DSBGA
Package Width	2.13 mm
Synchronous Rectifier	Yes
Topology	Buck
Voltage - Input (Max)	5.5 V
Voltage - Input (Min)	2.5 V
Voltage - Output (Max)	3.36 V
Voltage - Output (Min/Fixed)	0.5 V

LP8758 Series

Four, single-phase, 4-A output DC-DC step-down converter

Part	Supplied Contents	Secondary Attributes	Contents	Type	Utilized IC / Part	Function	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Regulator Topology	Main Purpose	Synchronous Rectifier	Voltage - Output (Min/Fixed)	Voltage - Input (Max)	Mounting Type	Topology	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Package Length	Package Width	Package / Case	Output Configuration	Voltage - Input (Min)	Number of Outputs	Current - Output	Voltage - Output (Max)	Frequency - Switching
Texas Instruments LP8758EVM	Board(s) Cable(s)	Graphical User Interface (GUI)	Board Cable	Power Management	LP8758	Mobiles Special Purpose

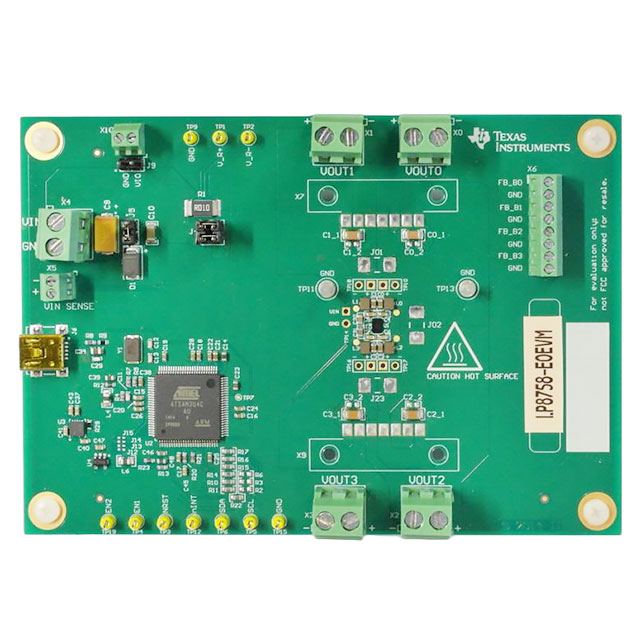

Texas Instruments LP8758-E0EVM	Board(s) Cable(s)		Board Cable		LP8758-E0		4 count	Non-Isolated	4	Fully Populated	Buck	DC/DC Step Down
Texas Instruments LP8758A1E0YFFR						Step-Down		Programmable					Yes	0.5 V	5.5 V	Surface Mount	Buck	85 °C	-40 °C	35-DSBGA	2.88 mm	2.13 mm	35-UFBGA DSBGA	Positive	2.5 V	4	4 A	3.36 V	3.3 MHz
Texas Instruments LP8758A1B0YFFR						Step-Down		Programmable					Yes	0.5 V	5.5 V	Surface Mount	Buck	85 °C	-40 °C	35-DSBGA	2.88 mm	2.13 mm	35-UFBGA DSBGA	Positive	2.5 V	1	16 A	3.36 V	3.3 MHz
Texas Instruments LP8758A2E3YFFR						Step-Down		Adjustable					Yes	0.5 V	5.5 V	Surface Mount	Buck	85 °C	-40 °C	35-DSBGA	2.88 mm	2.13 mm	35-UFBGA DSBGA	Positive	2.5 V	4	4 A	3.36 V	2 MHz
Texas Instruments LP8758A2EAYFFR						Step-Down		Programmable					Yes	0.5 V	5.5 V	Surface Mount	Buck	105 °C	-40 °C	35-DSBGA	2.88 mm	2.13 mm	35-UFBGA DSBGA	Positive	2.5 V	4	4 A	3.36 V
