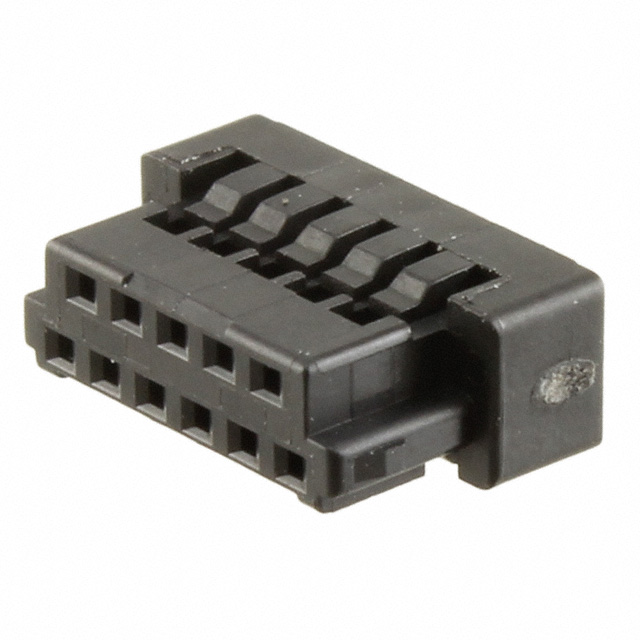

FI-W11S

Active

JAE Electronics

CONN PLUG HSG 11POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet Board-to-Cable Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FI-W11S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	11
Number of Rows	2
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

FI-W Series

Part	Voltage Rating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Connector Type	Contact Type	Style	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Finish - Mating	Contact Material	Insulation Color	Shrouding	Pitch [x]	Pitch [x]	Color	Note	Contact Termination
JAE Electronics FI-W15P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	15	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W21P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	21	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W41P-HFE	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	41	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W31P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	31	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W9P-HFE	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	9	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W17P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder		1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W31P-HFE	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	31	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W31S		Polyamide (PA66) Nylon 6/6 Glass Filled					Free Hanging (In-Line)			2				Plug	Female Socket			31													0.049 in	1.25 mm	Black	Contacts Not Included	Crimp
JAE Electronics FI-W41S		Polyamide (PA66) Nylon 6/6 Glass Filled					Free Hanging (In-Line)			2				Plug	Female Socket			41													0.049 in	1.25 mm	Black	Contacts Not Included	Crimp
JAE Electronics FI-W11S		Polyamide (PA66) Nylon 6/6 Glass Filled					Free Hanging (In-Line)			2				Plug	Female Socket			11													0.049 in	1.25 mm	Black	Contacts Not Included	Crimp
