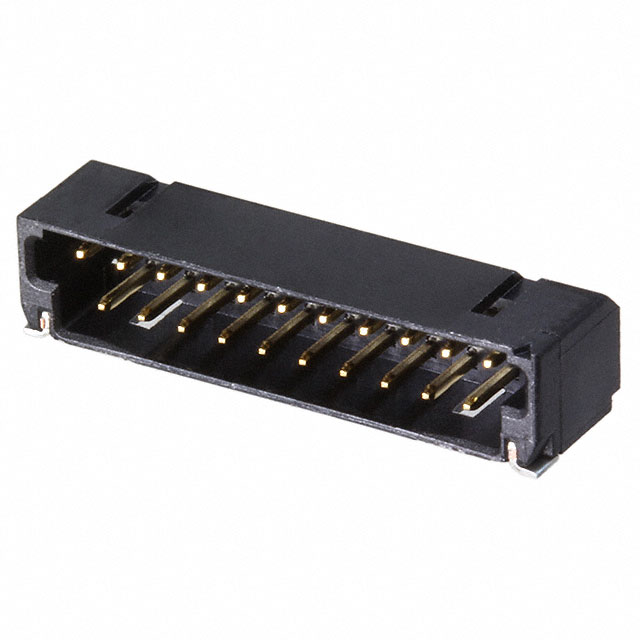

FI-W21P-HFE-E1500

Active

JAE Electronics

CONN HEADER SMD R/A 21POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FI-W21P-HFE-E1500

Active

JAE Electronics

CONN HEADER SMD R/A 21POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FI-W21P-HFE-E1500

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating [x]	0.055 in
Row Spacing - Mating [x]	1.4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

FI-W Series

Part	Voltage Rating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Connector Type	Contact Type	Style	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Finish - Mating	Contact Material	Insulation Color	Shrouding	Pitch [x]	Pitch [x]	Color	Note	Contact Termination
JAE Electronics FI-W15P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	15	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W21P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	21	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W41P-HFE	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	41	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W31P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	31	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W9P-HFE	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	9	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W17P-HFE-E1500	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder		1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W31P-HFE	200 V	Polyphenylene Sulfide (PPS) Glass Filled	0.055 in	1.4 mm	Square	Solder Retention	Surface Mount Right Angle	-40 °C	80 C	2	All	UL94 V-0	1 A	Receptacle	Male Pin	Board to Cable/Wire	Solder	31	1.25 mm	0.049 in	Tin or Tin-Alloy	3.7 mm	0.146 "	Friction Lock	2.4 mm	0.094 in	Gold	Copper Alloy	Black	Shrouded - 4 Wall
JAE Electronics FI-W31S		Polyamide (PA66) Nylon 6/6 Glass Filled					Free Hanging (In-Line)			2				Plug	Female Socket			31													0.049 in	1.25 mm	Black	Contacts Not Included	Crimp
JAE Electronics FI-W41S		Polyamide (PA66) Nylon 6/6 Glass Filled					Free Hanging (In-Line)			2				Plug	Female Socket			41													0.049 in	1.25 mm	Black	Contacts Not Included	Crimp
JAE Electronics FI-W11S		Polyamide (PA66) Nylon 6/6 Glass Filled					Free Hanging (In-Line)			2				Plug	Female Socket			11													0.049 in	1.25 mm	Black	Contacts Not Included	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.22
		10	$ 3.83
		100	$ 3.38
		500	$ 2.87
	Tape & Reel (TR)	1500	$ 2.36
		3000	$ 2.28

Description

General part information

FI-W Series

Connector Header Surface Mount, Right Angle 21 position 0.049" (1.25mm)
