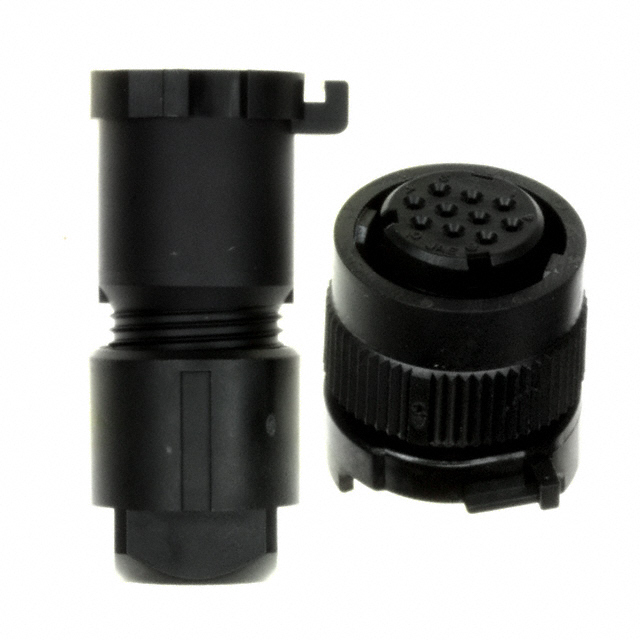

Specification	JN1DS10SL1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	22
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-20 °C
Orientation	N (Normal)
Shell Material	Synthetic Resin
Shell Size - Insert	S
Shielding	Unshielded
Type	For Female Sockets

JN1DS10S Series

Part	Shell Size - Insert	Mounting Type	Type	Note	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Shielding	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Contact Type	Connector Type	Housing Color	Contact Size	Orientation	Features	Insert Material
JAE Electronics JN1DS10SL2	S	Free Hanging (In-Line)	For Female Sockets	Contacts Not Included	Synthetic Resin	125 °C	-20 °C	Circular	Unshielded	10	Dust Tight Waterproof	IP67	Push-Twist	Crimp	Plug Housing	Black	22	N (Normal)	Backshell Coupling Nut	Synthetic Resin
JAE Electronics JN1DS10SLK	S	Free Hanging (In-Line)	For Female Sockets	Contacts Not Included	Synthetic Resin	125 °C	-20 °C	Circular	Unshielded	10	Dust Tight Waterproof	IP67	Push-Twist	Crimp	Plug Housing	Black	22	N (Normal)	Backshell Coupling Nut	Synthetic Resin
JAE Electronics JN1DS10SL3	S	Free Hanging (In-Line)	For Female Sockets	Contacts Not Included	Synthetic Resin	125 °C	-20 °C	Circular	Unshielded	10	Dust Tight Waterproof	IP67	Push-Twist	Crimp	Plug Housing	Black	22	N (Normal)	Backshell Coupling Nut	Synthetic Resin
JAE Electronics JN1DS10SL1	S	Free Hanging (In-Line)	For Female Sockets	Contacts Not Included	Synthetic Resin	125 °C	-20 °C	Circular	Unshielded	10	Dust Tight Waterproof	IP67	Push-Twist	Crimp	Plug Housing	Black	22	N (Normal)	Backshell Coupling Nut	Synthetic Resin
