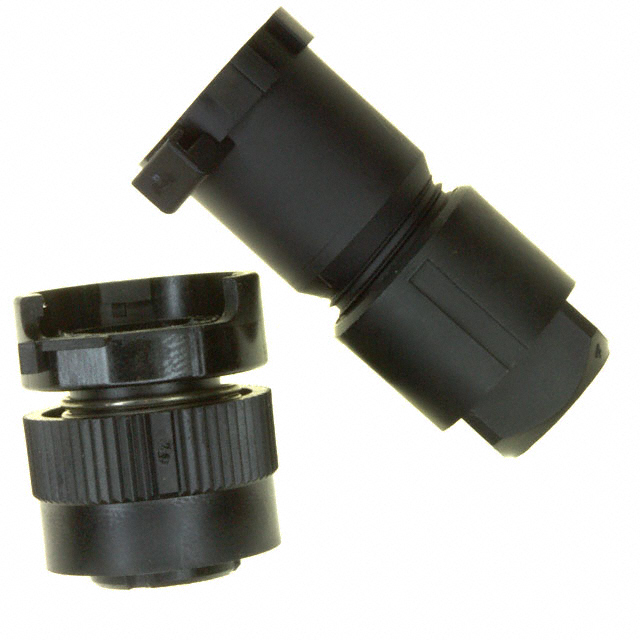

JN1DS10SL2

Active

JAE Electronics

CONN PLG HSG FMALE 10POS INLINE

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLG HSG FMALE 10POS INLINE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Type	Orientation	Mounting Type	Ingress Protection	Shell Size - Insert	Housing Color	Contact Type	Connector Type	Fastening Type	Features	Contact Shape	Insert Material	Note	Shell Material	Shielding	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]
JAE Electronics JN1DS10SL2	10	For Female Sockets	N	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	S	Black	Crimp	Plug Housing	Push-Twist	Backshell Coupling Nut	Circular	Synthetic Resin	Contacts Not Included	Synthetic Resin	Unshielded	22	-20 C	125 °C
JAE Electronics JN1DS10SLK	10	For Female Sockets	N	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	S	Black	Crimp	Plug Housing	Push-Twist	Backshell Coupling Nut	Circular	Synthetic Resin	Contacts Not Included	Synthetic Resin	Unshielded	22	-20 C	125 °C
JAE Electronics JN1DS10SL3	10	For Female Sockets	N	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	S	Black	Crimp	Plug Housing	Push-Twist	Backshell Coupling Nut	Circular	Synthetic Resin	Contacts Not Included	Synthetic Resin	Unshielded	22	-20 C	125 °C
JAE Electronics JN1DS10SL1	10	For Female Sockets	N	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	S	Black	Crimp	Plug Housing	Push-Twist	Backshell Coupling Nut	Circular	Synthetic Resin	Contacts Not Included	Synthetic Resin	Unshielded	22	-20 C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
