80PK-8

Active

Fluke Electronics

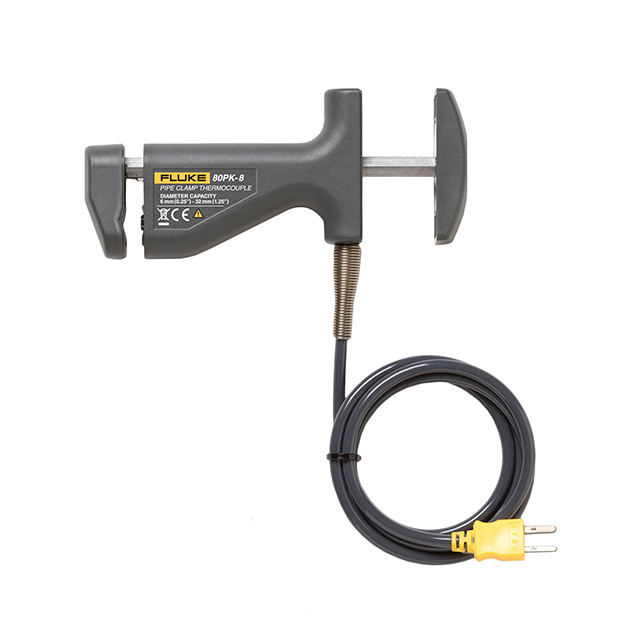

PROBE TEMP PIPE CLAMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents80PK-8 Instruction sheet Accessories Catalog (2017)+1

80PK-8

Active

Fluke Electronics

PROBE TEMP PIPE CLAMP

Deep-Dive with AI

Documents80PK-8 Instruction sheet Accessories Catalog (2017)+1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 229.99

Description

General part information

80PK Series

39.370" (1000.00mm) K-Type Thermocouple Contact, Clamp -20 ~ 300°F (-29 ~ 149°C)

Documents

Technical documentation and resources

80PK-8 Instruction sheet

Datasheet

Accessories Catalog (2017)

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	80PK-8	80PK Series

Accessory Type	-	Extension Wire Kit
Cable Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC), Plastic, Polytetrafluoroethylene (PTFE)
Cable Length	100 cm	100 cm
Cable Length	39.37 in	39.37 in
For Use With/Related Products	-	Thermocouple Wire, K-Type
Plug Color	Yellow	Yellow
Plug Type	Sub-Mini (Thermocouple Plug)	Sub-Mini (Thermocouple Plug)
Probe Length	-	3.75 - 8.5 in
Probe Length	-	95.25 - 215.9 mm
Probe Length	-	63.5 mm
Probe Length	-	0.25 - 31.75 mm
Probe Length	-	2.5 in
Probe Length	-	1.25 in
Probe Length	-	6.35 mm
Probe Length	-	2.5 "
Probe Material	Polybutylene Terephthalate (PBT)	Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT), Inconel, Stainless Steel
Probe Temperature Range	-	106 °C
Probe Temperature Range	-	221 °F
Probe Temperature Range [Max]	149 °C	105 - 816 °C
Probe Temperature Range [Max]	300 °F	221 - 1500 °F
Probe Temperature Range [Min]	-20 °F	-40 - 32 °F
Probe Temperature Range [Min]	-29 °C	-40 - 0 °C
Specifications	-	Extending and Repairing Wire
Tip Type	Contact, Clamp	Contact, Clamp, Air, Caged, Ribbon, Cuff, Beaded, Immersion / Penetration, Tapered
Type	K-Type Thermocouple	Probe, Test Clip, Lead, K-Type Thermocouple
Usage	HVAC	HVAC

80PK Series

KIT EXTENSION WIRE TYPE-K

Part	Specifications	For Use With/Related Products	Accessory Type	Type	Probe Length	Probe Length	Plug Color	Probe Temperature Range [Max]	Probe Temperature Range [Max]	Probe Temperature Range [Min]	Probe Temperature Range [Min]	Usage	Probe Material	Cable Length	Cable Length	Plug Type	Cable Insulation	Probe Length [Max]	Probe Length [Min]	Probe Length [Max]	Probe Length [Min]	Tip Type	Probe Length [Min]	Probe Length [Max]	Probe Temperature Range	Probe Temperature Range
Fluke Electronics 80PK-EXT	Extending and Repairing Wire	Thermocouple Wire, K-Type	Extension Wire Kit	Lead, Probe, Test Clip
Fluke Electronics 80PK-3A				K-Type Thermocouple	3.75 in	95.25 mm	Yellow	260 °C	500 °F	32 °F	0 °C	HVAC	Polytetrafluoroethylene (PTFE)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)
Fluke Electronics 80PK-10				K-Type Thermocouple			Yellow	149 °C	300 °F	-20 °F	-29 °C	HVAC	Polybutylene Terephthalate (PBT)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)	63.5 mm	31.75 mm	2.5 in	1.25 in	Clamp, Contact
Fluke Electronics 80PK-24				K-Type Thermocouple	8.5 in	215.9 mm	Yellow	816 °C	1500 °F	-40 °F	-40 °C	HVAC	Inconel	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Air, Caged
Fluke Electronics 80PK-18				K-Type Thermocouple			Yellow	149 °C	300 °F	-20 °F	-29 °C	HVAC	Polybutylene Terephthalate (PBT)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)	63.5 mm	0.25 "			Clamp, Contact	6.35 mm	2.5 "
Fluke Electronics 80PK-27				K-Type Thermocouple	8 in	203.2 mm	Yellow					HVAC	Stainless Steel	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Contact, Ribbon
Fluke Electronics 80PK-8				K-Type Thermocouple			Yellow	149 °C	300 °F	-20 °F	-29 °C	HVAC	Polybutylene Terephthalate (PBT)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Clamp, Contact
Fluke Electronics 80PK-11				K-Type Thermocouple			Yellow	105 °C	221 °F	-22 °F	-30 °C	HVAC		100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Plastic					Contact, Cuff
Fluke Electronics 80PK-1				K-Type Thermocouple			Yellow					HVAC	Polytetrafluoroethylene (PTFE)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Polytetrafluoroethylene (PTFE)					Air, Beaded			106 °C	221 °F
Fluke Electronics 80PK-26				K-Type Thermocouple	8.5 in	215.9 mm	Yellow	816 °C	1500 °F	-40 °F	-40 °C	HVAC	Stainless Steel	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Immersion / Penetration, Tapered
