80PK-1

Active

Fluke Electronics

PROBE BEAD TYPE-K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAccessories Catalog (2017)Datasheet

80PK-1

Active

Fluke Electronics

PROBE BEAD TYPE-K

Deep-Dive with AI

DocumentsAccessories Catalog (2017)Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.99

Description

General part information

80PK Series

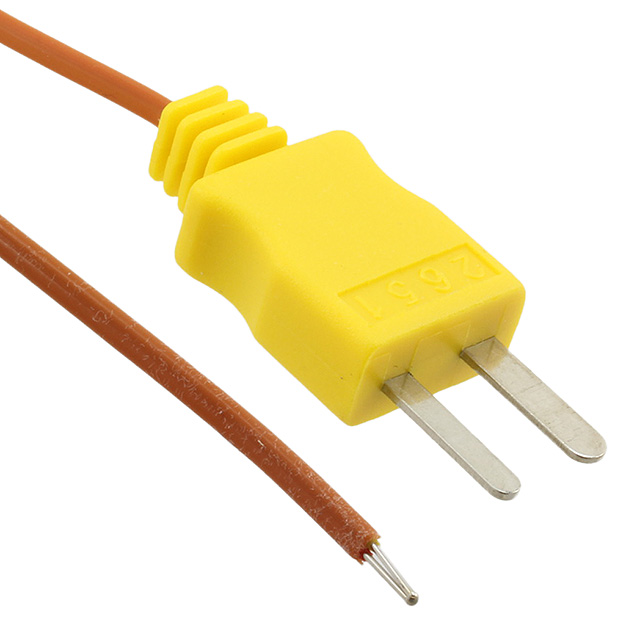

39.370" (1000.00mm) K-Type Thermocouple Air, Beaded 221°F (106°C)

Documents

Technical documentation and resources

Accessories Catalog (2017)

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	80PK-1	80PK Series

Accessory Type	-	Extension Wire Kit
Cable Insulation	Polytetrafluoroethylene (PTFE)	Poly-Vinyl Chloride (PVC), Plastic, Polytetrafluoroethylene (PTFE)
Cable Length	100 cm	100 cm
Cable Length	39.37 in	39.37 in
For Use With/Related Products	-	Thermocouple Wire, K-Type
Plug Color	Yellow	Yellow
Plug Type	Sub-Mini (Thermocouple Plug)	Sub-Mini (Thermocouple Plug)
Probe Length	-	3.75 - 8.5 in
Probe Length	-	95.25 - 215.9 mm
Probe Length	-	63.5 mm
Probe Length	-	0.25 - 31.75 mm
Probe Length	-	2.5 in
Probe Length	-	1.25 in
Probe Length	-	6.35 mm
Probe Length	-	2.5 "
Probe Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT), Inconel, Stainless Steel
Probe Temperature Range	106 °C	106 °C
Probe Temperature Range	221 °F	221 °F
Probe Temperature Range	-	105 - 816 °C
Probe Temperature Range	-	221 - 1500 °F
Probe Temperature Range	-	-40 - 32 °F
Probe Temperature Range	-	-40 - 0 °C
Specifications	-	Extending and Repairing Wire
Tip Type	Beaded, Air	Contact, Clamp, Air, Caged, Ribbon, Cuff, Beaded, Immersion / Penetration, Tapered
Type	K-Type Thermocouple	Probe, Test Clip, Lead, K-Type Thermocouple
Usage	HVAC	HVAC

80PK Series

KIT EXTENSION WIRE TYPE-K

Part	Specifications	For Use With/Related Products	Accessory Type	Type	Probe Length	Probe Length	Plug Color	Probe Temperature Range [Max]	Probe Temperature Range [Max]	Probe Temperature Range [Min]	Probe Temperature Range [Min]	Usage	Probe Material	Cable Length	Cable Length	Plug Type	Cable Insulation	Probe Length [Max]	Probe Length [Min]	Probe Length [Max]	Probe Length [Min]	Tip Type	Probe Length [Min]	Probe Length [Max]	Probe Temperature Range	Probe Temperature Range
Fluke Electronics 80PK-EXT	Extending and Repairing Wire	Thermocouple Wire, K-Type	Extension Wire Kit	Lead, Probe, Test Clip
Fluke Electronics 80PK-3A				K-Type Thermocouple	3.75 in	95.25 mm	Yellow	260 °C	500 °F	32 °F	0 °C	HVAC	Polytetrafluoroethylene (PTFE)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)
Fluke Electronics 80PK-10				K-Type Thermocouple			Yellow	149 °C	300 °F	-20 °F	-29 °C	HVAC	Polybutylene Terephthalate (PBT)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)	63.5 mm	31.75 mm	2.5 in	1.25 in	Clamp, Contact
Fluke Electronics 80PK-24				K-Type Thermocouple	8.5 in	215.9 mm	Yellow	816 °C	1500 °F	-40 °F	-40 °C	HVAC	Inconel	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Air, Caged
Fluke Electronics 80PK-18				K-Type Thermocouple			Yellow	149 °C	300 °F	-20 °F	-29 °C	HVAC	Polybutylene Terephthalate (PBT)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)	63.5 mm	0.25 "			Clamp, Contact	6.35 mm	2.5 "
Fluke Electronics 80PK-27				K-Type Thermocouple	8 in	203.2 mm	Yellow					HVAC	Stainless Steel	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Contact, Ribbon
Fluke Electronics 80PK-8				K-Type Thermocouple			Yellow	149 °C	300 °F	-20 °F	-29 °C	HVAC	Polybutylene Terephthalate (PBT)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Clamp, Contact
Fluke Electronics 80PK-11				K-Type Thermocouple			Yellow	105 °C	221 °F	-22 °F	-30 °C	HVAC		100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Plastic					Contact, Cuff
Fluke Electronics 80PK-1				K-Type Thermocouple			Yellow					HVAC	Polytetrafluoroethylene (PTFE)	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Polytetrafluoroethylene (PTFE)					Air, Beaded			106 °C	221 °F
Fluke Electronics 80PK-26				K-Type Thermocouple	8.5 in	215.9 mm	Yellow	816 °C	1500 °F	-40 °F	-40 °C	HVAC	Stainless Steel	100 cm	39.37 in	Sub-Mini (Thermocouple Plug)	Poly-Vinyl Chloride (PVC)					Immersion / Penetration, Tapered
