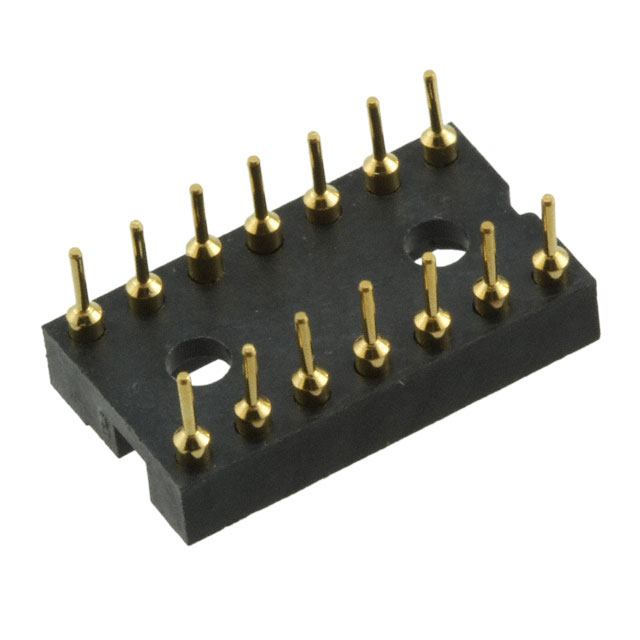

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9-1437535-1

Obsolete

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9-1437535-1

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Post	25 µin
Contact Finish Thickness - Post	0.63 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Copper Alloy
Contact Resistance	10 mOhm
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

1437535 Series

Part	Contact Material - Post [custom]	Pitch - Mating	Pitch - Mating	Termination	Contact Material - Mating	Termination Post Length	Termination Post Length	Type	Type	Type	Mounting Type	Pitch - Post	Pitch - Post	Contact Resistance	Number of Positions or Pins (Grid)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Material Flammability Rating	Contact Material - Post	Number of Positions or Pins (Grid) [custom]
TE Connectivity Raychem Cable Protection 1-1437535-9	Brass	0.1 in	2.54 mm	Solder	Beryllium Copper	3.18 mm	0.125 in	0.3 "	7.62 mm	DIP	Through Hole	2.54 mm	0.1 in	10 mOhm	8	105 ░C	-55 °C	Tin	Closed Frame
TE Connectivity Raychem Cable Protection 7-1437535-0		0.1 in	2.54 mm	Solder	Beryllium Copper	3.18 mm	0.125 in			SIP	Through Hole	2.54 mm	0.1 in		14	125 °C	-55 °C	Tin-Lead	Closed Frame	10 çin	0.25 çm	Gold	10 çin	0.25 çm	Polyester	UL94 V-0	Beryllium Copper
TE Connectivity Raychem Cable Protection 9-1437535-1	Copper Alloy	0.1 in	2.54 mm	Solder	Beryllium Copper	3.18 mm	0.125 in	0.3 "	7.62 mm	DIP	Through Hole	2.54 mm	0.1 in	10 mOhm	14	125 °C	-55 °C	Gold	Closed Frame			Gold	25 µin	0.63 µm		UL94 V-0
TE Connectivity Raychem Cable Protection 9-1437535-4		0.1 in	2.54 mm	Solder	Beryllium Copper	3.18 mm	0.125 in	0.3 "	7.62 mm	DIP	Through Hole	2.54 mm	0.1 in	10 mOhm	14	125 °C	-55 °C	Gold	Closed Frame			Gold	25 µin	0.63 µm			Beryllium Copper
TE Connectivity Raychem Cable Protection 5-1437535-4		0.1 in	2.54 mm	Solder	Beryllium Copper	3.18 mm	0.125 in			SIP	Through Hole	2.54 mm	0.1 in					Gold	Closed Frame	10 çin	0.25 çm	Gold	10 çin	0.25 çm		UL94 V-0	Beryllium Copper	20
