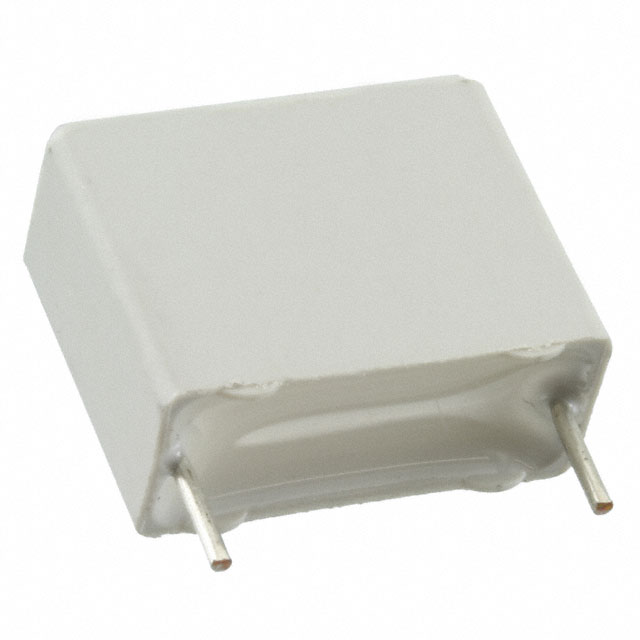

SMR15225K63B12L4BULK

Active

KEMET

CAP FILM 2.2UF 10% 63VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 2.2UF 10% 63VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SMR15225K63B12L4BULK

Applications	General Purpose
Capacitance	2.2 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized
Features	High Temperature
Height - Seated (Max) [Max]	15 mm
Height - Seated (Max) [Max]	0.591 "
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.315 in
Size / Dimension [y]	8 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 VDC

Part	Voltage Rating - AC	Package / Case	Mounting Type	Termination	Capacitance	Voltage Rating - DC	Dielectric Material	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET SMR15225J63B12L16.5CBULK	40 V	Radial	Through Hole	PC Pins	2.2 µF	63 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.315 in	8 mm	High Temperature	5 %	15 mm	0.591 in	-55 °C	150 °C	15 mm	0.591 "
KEMET SMR15105K100B06L4BULK	63 V	Radial	Through Hole	PC Pins	1 µF	100 V	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.295 in	7.5 mm	High Temperature	10 %	15 mm	0.591 in	-55 °C	150 °C			0.571 in	14.5 mm
KEMET SMR15225K63B12L4BULK	40 V	Radial	Through Hole	PC Pins	2.2 µF	63 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.315 in	8 mm	High Temperature	10 %	15 mm	0.591 in	-55 °C	150 °C	15 mm	0.591 "
KEMET SMR15104J400B10L16.5CBULK	200 V	Radial	Through Hole	PC Pins	100000 pF	400 V	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.256 in	6.5 mm	High Temperature	5 %	15 mm	0.591 in	-55 °C	150 °C	12.5 mm	0.492 in
KEMET SMR15335J50B06L16.5CBULK	30 V	Radial	Through Hole	PC Pins	3.3 µF	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.295 in	7.5 mm	High Temperature	5 %	15 mm	0.591 in	-55 °C	150 °C			0.571 in	14.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2400	$ 6.29

General part information

2.2 µF Film Capacitor 40V 63V Polyphenylene Sulfide (PPS), Metallized Radial
