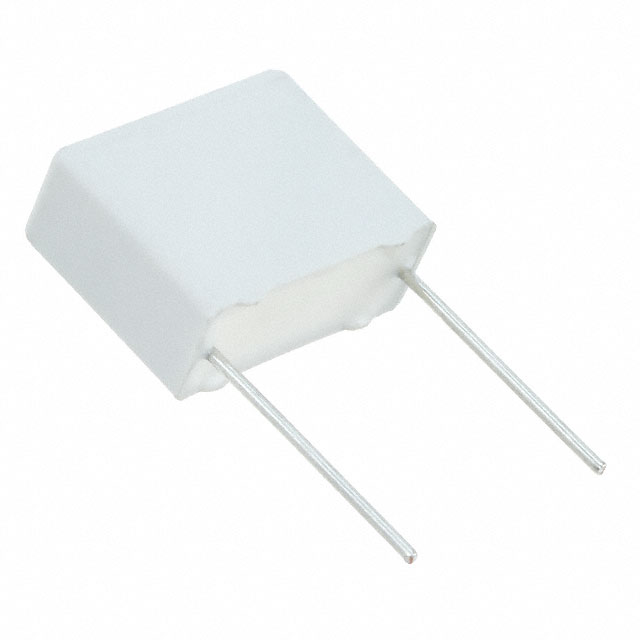

SMR15335J50B06L16.5CBULK

Active

KEMET

CAP FILM 3.3UF 5% 50VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 3.3UF 5% 50VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SMR15335J50B06L16.5CBULK

Applications	General Purpose
Capacitance	3.3 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized
Features	High Temperature
Height - Seated (Max) [Max] [z]	0.571 in
Height - Seated (Max) [Max] [z]	14.5 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	7.5 mm
Size / Dimension [y]	0.295 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	30 V
Voltage Rating - DC	50 VDC

Part	Voltage Rating - AC	Package / Case	Mounting Type	Termination	Capacitance	Voltage Rating - DC	Dielectric Material	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Tolerance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET SMR15225J63B12L16.5CBULK	40 V	Radial	Through Hole	PC Pins	2.2 µF	63 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.315 in	8 mm	High Temperature	5 %	15 mm	0.591 in	-55 °C	150 °C	15 mm	0.591 "
KEMET SMR15105K100B06L4BULK	63 V	Radial	Through Hole	PC Pins	1 µF	100 V	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.295 in	7.5 mm	High Temperature	10 %	15 mm	0.591 in	-55 °C	150 °C			0.571 in	14.5 mm
KEMET SMR15225K63B12L4BULK	40 V	Radial	Through Hole	PC Pins	2.2 µF	63 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.315 in	8 mm	High Temperature	10 %	15 mm	0.591 in	-55 °C	150 °C	15 mm	0.591 "
KEMET SMR15104J400B10L16.5CBULK	200 V	Radial	Through Hole	PC Pins	100000 pF	400 V	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.256 in	6.5 mm	High Temperature	5 %	15 mm	0.591 in	-55 °C	150 °C	12.5 mm	0.492 in
KEMET SMR15335J50B06L16.5CBULK	30 V	Radial	Through Hole	PC Pins	3.3 µF	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	0.709 in	18 mm	0.295 in	7.5 mm	High Temperature	5 %	15 mm	0.591 in	-55 °C	150 °C			0.571 in	14.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.3 µF Film Capacitor 30V 50V Polyphenylene Sulfide (PPS), Metallized Radial
