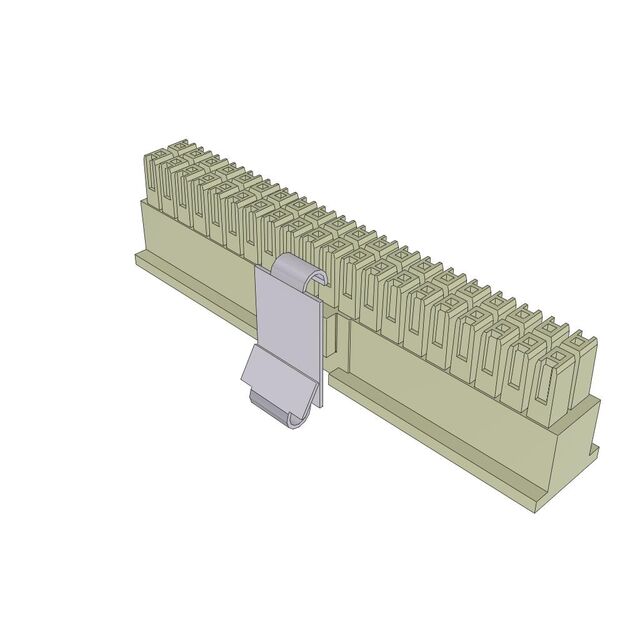

IPD1-20-D-M

Active

Samtec Inc.

CONN HOUSING RCP 40 POS 2.54MM CRIMP ST CABLE MOUNT WHITE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HOUSING RCP 40 POS 2.54MM CRIMP ST CABLE MOUNT WHITE TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Insulation Material	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Contact Termination	Contact Type	Connector Type	Mounting Type	Color	Fastening Type	Features	Note	Row Spacing [x]	Row Spacing
Samtec Inc. IPD1-20-S-K	Polyamide (PA66) Nylon 6/6	20	1	2.54 mm	0.1 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	White	Latch Lock	Polarizing Key	Contacts Not Included
Samtec Inc. IPD1-20-D	Polyamide (PA66) Nylon 6/6	40	2	2.54 mm	0.1 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	White	Latch Lock		Contacts Not Included	0.1 in	2.54 mm
Samtec Inc. IPD1-20-D-R	Polyamide (PA66) Nylon 6/6	40	2	2.54 mm	0.1 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	White	Latch Lock		Contacts Not Included	0.1 in	2.54 mm
Samtec Inc. IPD1-20-D-M	Polyamide (PA66) Nylon 6/6	40	2	2.54 mm	0.1 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	White	Latch Lock		Contacts Not Included	0.1 in	2.54 mm
