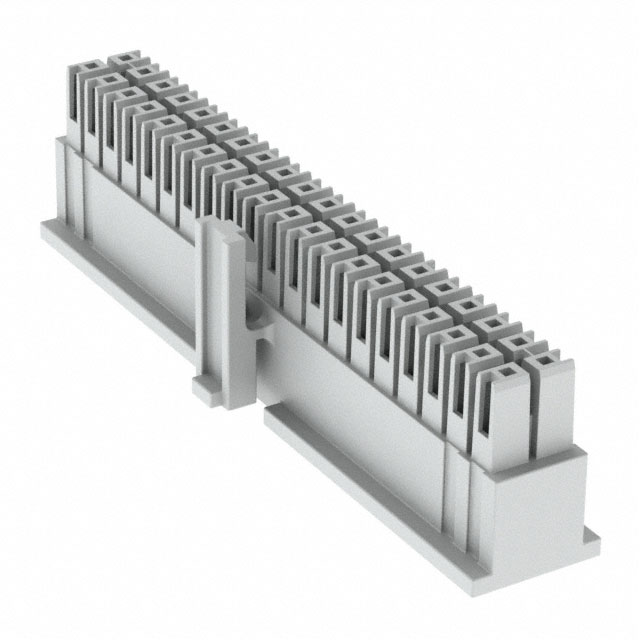

IPD1-20-D

Active

CONN RCPT HSG 40POS 2.54MM

Active

CONN RCPT HSG 40POS 2.54MM

Description

General part information

40 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)

Parameters and characteristics for this part

Part	Note	Mounting Type	Features	Row Spacing	Pitch	Contact Type	Number of Rows	Contact Termination	Number of Positions	Insulation Material	Color	Connector Type	Fastening Type
Samtec Inc. IPD1-20-D-P-M	Contacts Not Included	Free Hanging (In-Line)	Polarizing Key	0.1 in	0.1 in	Female Socket	2	Crimp	40	Nylon 6/6 Polyamide (PA66)	White	Receptacle	Latch Lock
Samtec Inc. IPD1-20-S-K-M	Contacts Not Included	Free Hanging (In-Line)	Polarizing Key		0.1 in	Female Socket	1	Crimp	20	Nylon 6/6 Polyamide (PA66)	White	Receptacle	Latch Lock
Samtec Inc. IPD1-20-D-GP-R	Contacts Not Included	Free Hanging (In-Line)	Guide Post	0.1 in	0.1 in	Female Socket	2	Crimp	40	Nylon 6/6 Polyamide (PA66)	White	Receptacle	Latch Lock
Samtec Inc. IPD1-20-S-K	Contacts Not Included	Free Hanging (In-Line)	Polarizing Key		0.1 in	Female Socket	1	Crimp	20	Nylon 6/6 Polyamide (PA66)	White	Receptacle	Latch Lock
Samtec Inc. IPD1-20-D	Contacts Not Included	Free Hanging (In-Line)		0.1 in	0.1 in	Female Socket	2	Crimp	40	Nylon 6/6 Polyamide (PA66)	White	Receptacle	Latch Lock
Samtec Inc. IPD1-20-D-R	Contacts Not Included	Free Hanging (In-Line)		0.1 in	0.1 in	Female Socket	2	Crimp	40	Nylon 6/6 Polyamide (PA66)	White	Receptacle	Latch Lock
Samtec Inc. IPD1-20-D-M	Contacts Not Included	Free Hanging (In-Line)		0.1 in	0.1 in	Female Socket	2	Crimp	40	Nylon 6/6 Polyamide (PA66)	White	Receptacle	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
