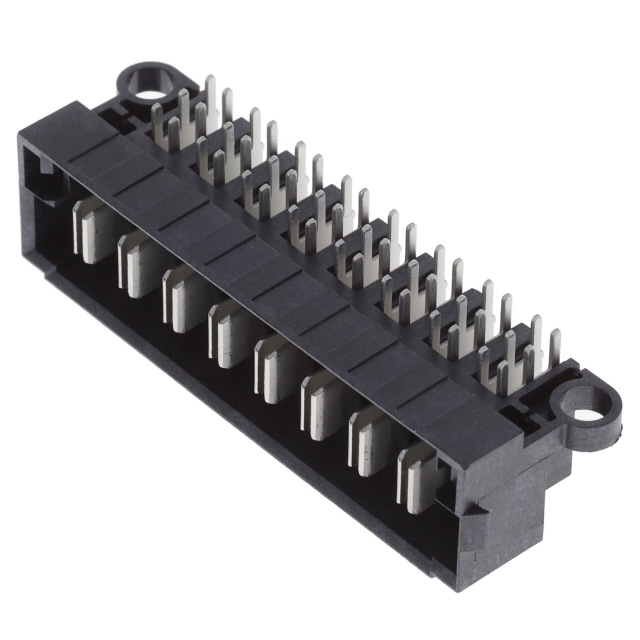

MPT-08-01-01-T-RA-SD

Active

Samtec Inc.

CONN HDR 8POS 5.00MM EDGE RA SLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 8POS 5.00MM EDGE RA SLD

Technical Specifications

Parameters and characteristics for this part

Specification	MPT-08-01-01-T-RA-SD

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Tin
Contact Material	Copper Alloy
Current Rating (Amps)	30 A
Fastening Type	Locking Ramp, Screw Lock
Features	Flange
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Solder
Voltage Rating	812 V

Part	Features	Contact Material	Fastening Type	Number of Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Voltage Rating	Connector Type	Current Rating (Amps)	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish	Termination
Samtec Inc. MPT-08-6.30-01-L-V	Board Guide Latch Lock	Copper Alloy	Locking Ramp	1	Liquid Crystal Polymer (LCP)	10 Áin	0.25 Ám	5 mm	0.197 in	812 V	Header Male Blades	30 A	Black	8	-55 °C	125 °C	Through Hole	Gold	Solder
Samtec Inc. MPT-08-01-03-L-RA-SD		Copper Alloy	Latch Lock	1	Liquid Crystal Polymer (LCP)	10 Áin	0.25 Ám	5 mm	0.197 in	812 V	Header Male Blades	30 A	Black	8	-55 °C	125 °C	Through Hole Right Angle	Gold	Solder
Samtec Inc. MPT-08-01-01-T-RA-SD	Flange	Copper Alloy	Locking Ramp Screw Lock	1	Liquid Crystal Polymer (LCP)			5 mm	0.197 in	812 V	Header Male Blades	30 A	Black	8	-55 °C	105 ░C	Board Edge Right Angle Through Hole	Tin	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Board Edge, Through Hole, Right Angle
