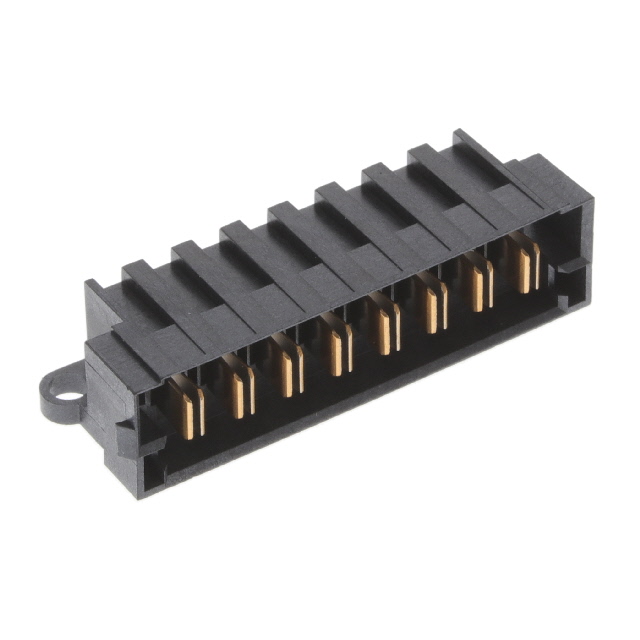

MPT-08-01-03-L-RA-SD

Active

Samtec Inc.

CONN HDR 8POS 5.00MM R/A SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 8POS 5.00MM R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Part	Features	Contact Material	Fastening Type	Number of Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Voltage Rating	Connector Type	Current Rating (Amps)	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish	Termination
Samtec Inc. MPT-08-6.30-01-L-V	Board Guide Latch Lock	Copper Alloy	Locking Ramp	1	Liquid Crystal Polymer (LCP)	10 Áin	0.25 Ám	5 mm	0.197 in	812 V	Header Male Blades	30 A	Black	8	-55 °C	125 °C	Through Hole	Gold	Solder
Samtec Inc. MPT-08-01-03-L-RA-SD		Copper Alloy	Latch Lock	1	Liquid Crystal Polymer (LCP)	10 Áin	0.25 Ám	5 mm	0.197 in	812 V	Header Male Blades	30 A	Black	8	-55 °C	125 °C	Through Hole Right Angle	Gold	Solder
Samtec Inc. MPT-08-01-01-T-RA-SD	Flange	Copper Alloy	Locking Ramp Screw Lock	1	Liquid Crystal Polymer (LCP)			5 mm	0.197 in	812 V	Header Male Blades	30 A	Black	8	-55 °C	105 ░C	Board Edge Right Angle Through Hole	Tin	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
