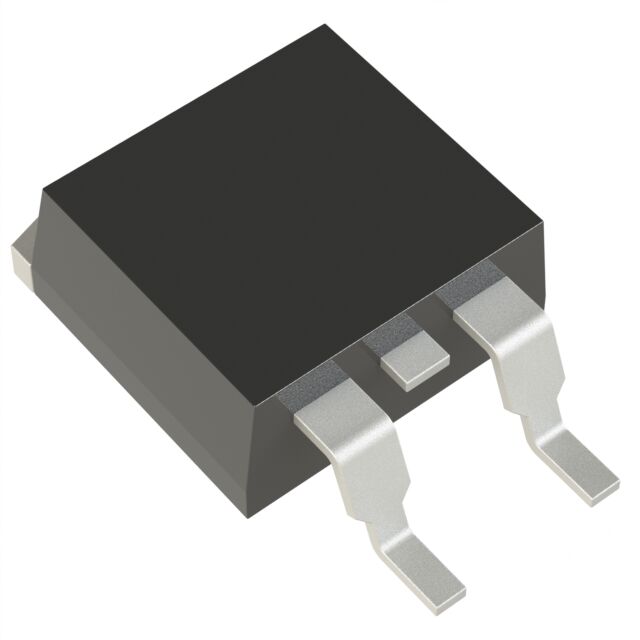

IPB90N06S404ATMA2
ObsoleteInfineon Technologies
INFINEON’S IPB90N06S4-04 WITH WORLD'S LOWEST RDS AT 60V, 175°C OPERATING TEMPERATURE, ROHS COMPLIANT. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.
Deep-Dive with AI
Search across all available documentation for this part.
IPB90N06S404ATMA2
ObsoleteInfineon Technologies
INFINEON’S IPB90N06S4-04 WITH WORLD'S LOWEST RDS AT 60V, 175°C OPERATING TEMPERATURE, ROHS COMPLIANT. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPB90N06S404ATMA2 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 90 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 128 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 10400 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Power Dissipation (Max) | 150 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 4 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 2.65 | |
| 10 | $ 1.87 | |||
| 50 | $ 1.57 | |||
| 100 | $ 1.49 | |||
| 500 | $ 1.34 | |||
Description
General part information
IPB90N06 Series
N-Channel 60 V 90A (Tc) 150W (Tc) Surface Mount PG-TO263-3
