SDP1-24-100T
ActiveAC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 36.4 W, 24 VDC, 1.3 A
Deep-Dive with AI
Search across all available documentation for this part.
SDP1-24-100T
ActiveAC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 36.4 W, 24 VDC, 1.3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDP1-24-100T |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial), Industrial, Hazardous Locations |
| Approval Agency | CE, cURus, cULus |
| Current - Output (Max) [Max] | 1.3 A |
| DC Voltage - Input (Max) [Max] | 375 V |
| DC Voltage - Input (Min) [Min] | 90 V |
| Efficiency | 83 % |
| Features | Adjustable Output, Universal Input, IP20 |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 31 W |
| Size / Dimension [x] | 3.58 in |
| Size / Dimension [x] | 90.9 mm |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 2.95 " |
| Size / Dimension [z] | 74.9 mm |
| Voltage - Output 1 | 24 V |
SDP1 Series
| Part | Voltage - Output 1 | DC Voltage - Input (Max) [Max] | Input Type | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Features | DC Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Number of Outputs | Power (Watts) | Applications | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SolaHD | 24 V | 375 V | AC or DC | 85 VAC | 264 VAC | 1.77 " | 3.58 in | 2.95 " | 45 mm | 74.9 mm | 90.9 mm | Adjustable Output IP20 Universal Input | 90 V | 1.3 A | 1 | 31 W | Hazardous Locations Industrial ITE (Commercial) | CE cULus cURus | -10 °C | 70 °C | 83 % |
SolaHD | 48 V | 375 V | AC or DC | 85 VAC | 264 VAC | 1.77 " | 3.58 in | 2.95 " | 45 mm | 74.9 mm | 90.9 mm | Adjustable Output IP20 Universal Input | 90 V | 1.05 A | 1 | 50 W | Hazardous Locations Industrial ITE (Commercial) | CE cULus cURus | -10 °C | 70 °C | 90 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 135.46 | |
| 10 | $ 119.06 | |||
| 25 | $ 113.10 | |||
| 50 | $ 108.78 | |||
Description
General part information
SDP1 Series

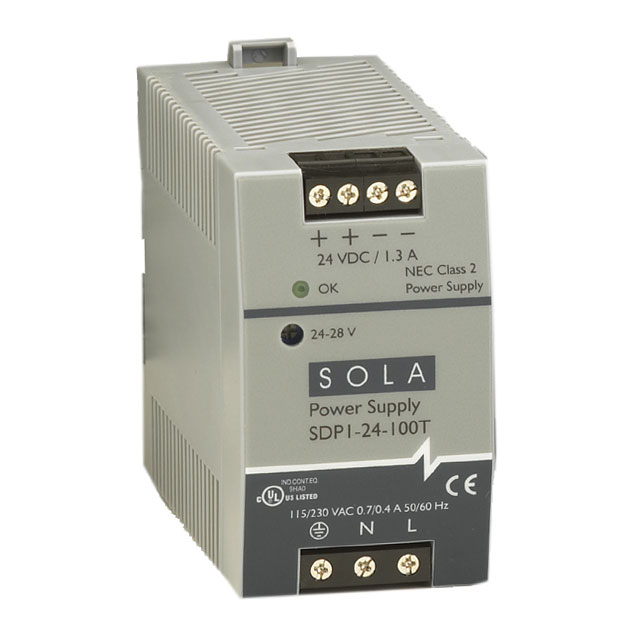

The SDP1-24-100T is a 24V/36.4W 1-output DIN-rail mount AC to DC Power Supply features a compact size and lightweight, overvoltage and continuous short-circuit protection. This extra small, efficient unit is designed specifically for the industrial environment. Many extra industrial features are standard for the SDP Power Boost™ overload circuitry can start up industrial loads (i.e. motors, relays, solenoids and DC-DC converters), that can cause ordinary power supplies to fold back or shutdown. Each unit contains a DC indicator and front panel adjustment potentiometer. With the SolaHD SDP-series with high grade design. This power supply output is fixed and can be adjustable.
