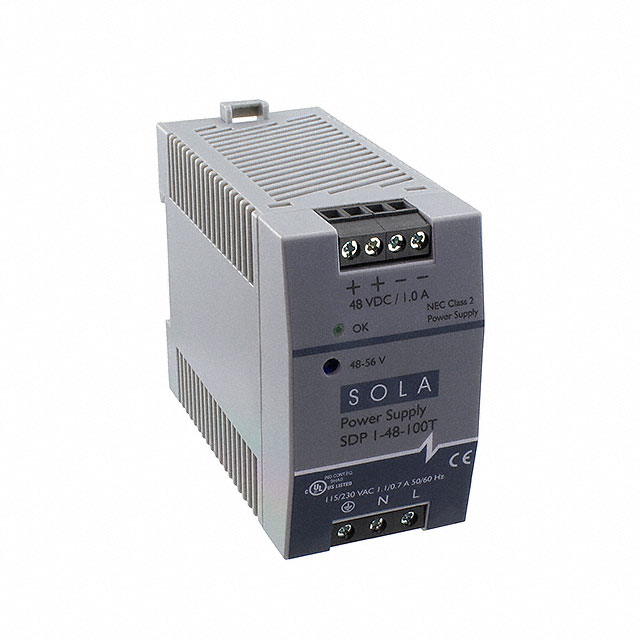

SDP1-48-100T

Active

SolaHD

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 48 W, 48 VDC, 1 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDP1-48-100T

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, cURus, cULus
Current - Output (Max) [Max]	1.05 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	90 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	3.58 in
Size / Dimension [x]	90.9 mm
Size / Dimension [y]	1.77 "
Size / Dimension [y]	45 mm
Size / Dimension [z]	2.95 "
Size / Dimension [z]	74.9 mm
Voltage - Output 1	48 V

SDP1 Series

Part	Voltage - Output 1	DC Voltage - Input (Max) [Max]	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Power (Watts)	Applications	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency
SolaHD SDP1-24-100T	24 V	375 V	AC or DC	85 VAC	264 VAC	1.77 "	3.58 in	2.95 "	45 mm	74.9 mm	90.9 mm	Adjustable Output IP20 Universal Input	90 V	1.3 A	1	31 W	Hazardous Locations Industrial ITE (Commercial)	CE cULus cURus	-10 °C	70 °C	83 %
SolaHD SDP1-48-100T	48 V	375 V	AC or DC	85 VAC	264 VAC	1.77 "	3.58 in	2.95 "	45 mm	74.9 mm	90.9 mm	Adjustable Output IP20 Universal Input	90 V	1.05 A	1	50 W	Hazardous Locations Industrial ITE (Commercial)	CE cULus cURus	-10 °C	70 °C	90 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 167.84
		10	$ 162.06
		40	$ 159.16
Newark	Each	1	$ 201.78
		5	$ 191.69
		10	$ 179.59
		25	$ 171.52

Description

General part information

SDP1 Series

The SDP1-48-100T is a 48V/48W 1-output DIN-rail mount AC to DC Power Supply features a compact size and lightweight, overvoltage and continuous short-circuit protection. This extra small, efficient unit is designed specifically for the industrial environment. Many extra industrial features are standard for the SDP Power Boost™ overload circuitry can start up industrial loads (i.e. motors, relays, solenoids and DC-DC converters), that can cause ordinary power supplies to fold back or shutdown. Each unit contains a DC indicator and front panel adjustment potentiometer. With the SolaHD SDP-series with high grade design. This power supply output is fixed and can be adjustable.
