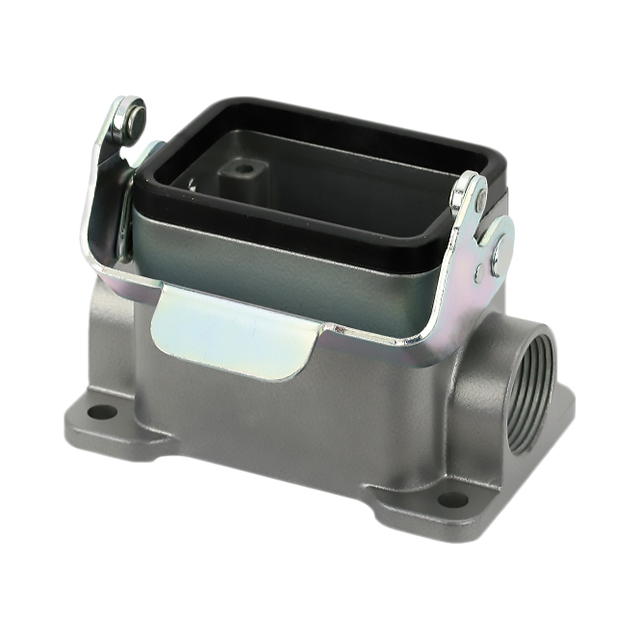

C146 10N006 603 1

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE6 M20

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE6 M20

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10N006 603 1

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	84 mm
Size / Dimension [x]	3.307 in
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.126 in
Size / Dimension [z]	54 mm
Size / Dimension [z]	2.126 in
Style	Side Entry
Thread Size	M20

Part	Thread Size	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Housing Material	Lock Location	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Ingress Protection
Amphenol Tuchel Industrial C146 10N006 507 1	M20	Cover	54 mm	2.126 in	54 mm	2.126 in	84 mm	3.307 in	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Base - Box Mount	100 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C146 10N006 603 1	M20	Feed Through	54 mm	2.126 in	54 mm	2.126 in	84 mm	3.307 in	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Base - Box Mount	100 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C146 10N006 806 1	M25	Cover	54 mm	2.126 in	54 mm	2.126 in	84 mm	3.307 in	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	Base - Box Mount	100 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 21.92

General part information

Base - Box Mount Connector Side Entry M20 E6 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
