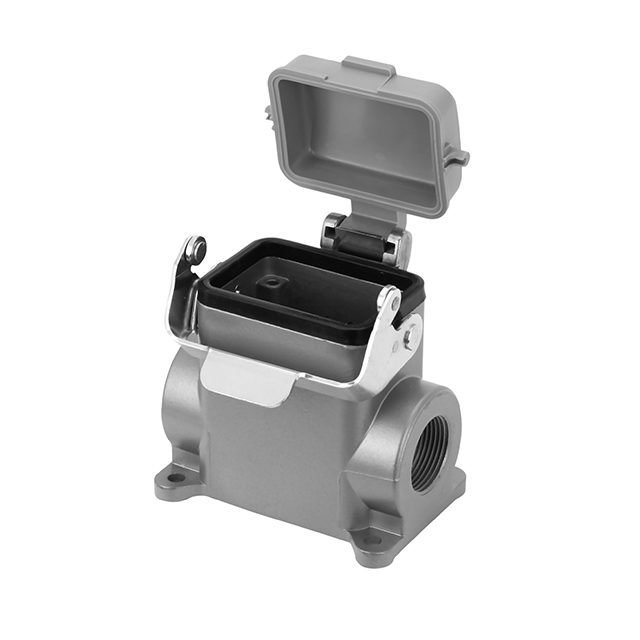

C146 10N006 507 1
ActiveAmphenol Tuchel Industrial
CONN BASE SIDE ENTRY SZE6 M20
Deep-Dive with AI
Search across all available documentation for this part.
C146 10N006 507 1
ActiveAmphenol Tuchel Industrial
CONN BASE SIDE ENTRY SZE6 M20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 10N006 507 1 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Cover |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 84 mm |
| Size / Dimension [x] | 3.307 in |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [y] | 2.126 in |
| Size / Dimension [z] | 54 mm |
| Size / Dimension [z] | 2.126 in |
| Style | Side Entry |
| Thread Size | M20 |
C146 10N006 Series
| Part | Thread Size | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Housing Material | Lock Location | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | M20 | Cover | 54 mm | 2.126 in | 54 mm | 2.126 in | 84 mm | 3.307 in | Aluminum Alloy Die Cast | Locking Clip (1) on Base Bottom | Base - Box Mount | 100 °C | -40 °C | Side Entry | IP65 - Dust Tight Water Resistant |
Amphenol Tuchel Industrial | M20 | Feed Through | 54 mm | 2.126 in | 54 mm | 2.126 in | 84 mm | 3.307 in | Aluminum Alloy Die Cast | Locking Clip (1) on Base Bottom | Base - Box Mount | 100 °C | -40 °C | Side Entry | IP65 - Dust Tight Water Resistant |
Amphenol Tuchel Industrial | M25 | Cover | 54 mm | 2.126 in | 54 mm | 2.126 in | 84 mm | 3.307 in | Aluminum Alloy Die Cast | Locking Clip (1) on Base Bottom | Base - Box Mount | 100 °C | -40 °C | Side Entry | IP65 - Dust Tight Water Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 27.80 | |
Description
General part information
C146 10N006 Series
Base - Box Mount Connector Side Entry M20 E6 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
