73204W 008100

Active

Belden Inc.

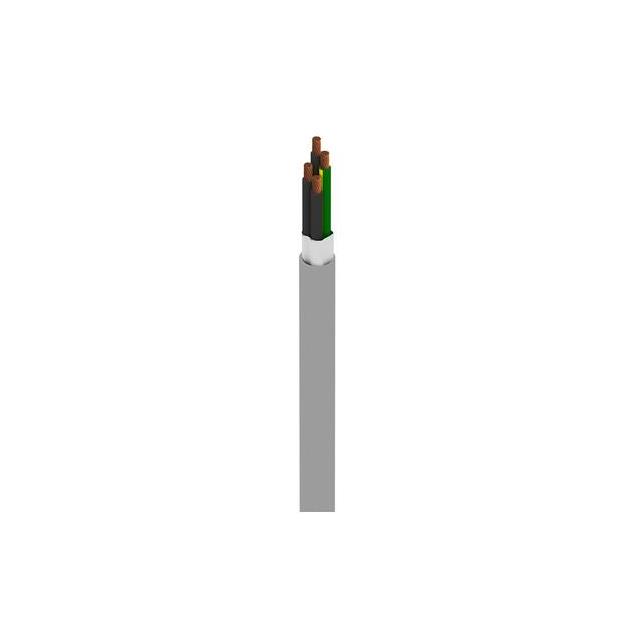

CABLE 4COND 12AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 12AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	73204W 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	12.7 mm
Jacket (Insulation) Diameter [diameter]	0.5 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.08 in
Jacket (Insulation) Thickness	2.032 mm
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	12 AWG

Part	Conductor Insulation	Spool Size	Spool Size	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length	Ratings	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Material	Length [x]	Length [x]
Belden Inc. 73204W 0081000	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	12.7 mm	0.5 in	Oil Resistant	Enter Number of Feet in Order Quantity	UL Style 2587	600 V	4	30 AWG	65	Multi-Conductor	12 AWG	0.08 in	2.032 mm	Gray	Copper Bare
Belden Inc. 73204W 008100	Poly-Vinyl Chloride (PVC)			Poly-Vinyl Chloride (PVC)	12.7 mm	0.5 in	Oil Resistant		UL Style 2587	600 V	4	30 AWG	65	Multi-Conductor	12 AWG	0.08 in	2.032 mm	Gray	Copper Bare	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 4.07

General part information

4 Conductor Multi-Conductor Cable Gray 12 AWG 100.0' (30.5m)
