73204W 0081000
ActiveBelden Inc.

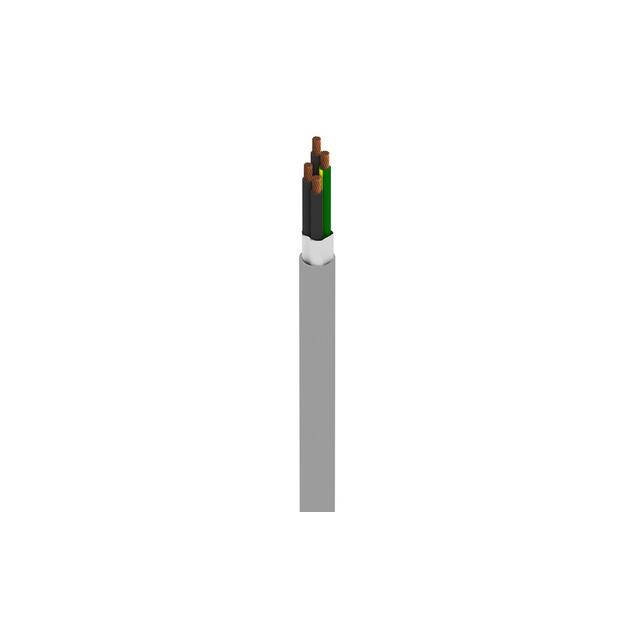

CABLE 4COND 12AWG GRAY FEET
Deep-Dive with AI
Search across all available documentation for this part.
73204W 0081000
ActiveBelden Inc.
CABLE 4COND 12AWG GRAY FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 73204W 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 65 |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 12.7 mm |
| Jacket (Insulation) Diameter [diameter] | 0.5 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.08 in |
| Jacket (Insulation) Thickness | 2.032 mm |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Ratings | UL Style 2587 |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 600 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 7.30 | |
| 3 | $ 6.73 | |||
| 5 | $ 6.49 | |||
| 7 | $ 6.35 | |||
| 10 | $ 6.18 | |||
| 25 | $ 5.81 | |||
| 50 | $ 5.51 | |||
| 100 | $ 5.27 | |||
Description
General part information
73204W Series
4 Conductor Multi-Conductor Cable Gray 12 AWG Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
