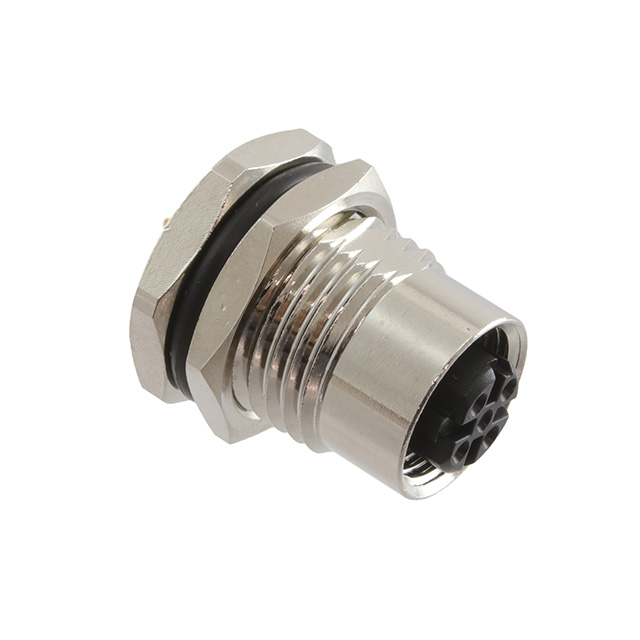

859RD04-203R004 - 859RD04-203R004

859RD04-203R004

Active
MH Connectors

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
859RD04-203R004 - 859RD04-203R004

859RD04-203R004

Active
MH Connectors

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification859RD04-203R004
ColorSilver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialBrass
Current Rating (Amps)4 A
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Number of Positions4
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationD
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM12-4
ShieldingShielded
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 19.29
10$ 14.85
25$ 13.44
40$ 12.78
80$ 11.89
230$ 10.68
440$ 10.03
945$ 9.33
NewarkEach 100$ 14.68
250$ 13.64
500$ 12.74

Description

General part information

859RD04 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
