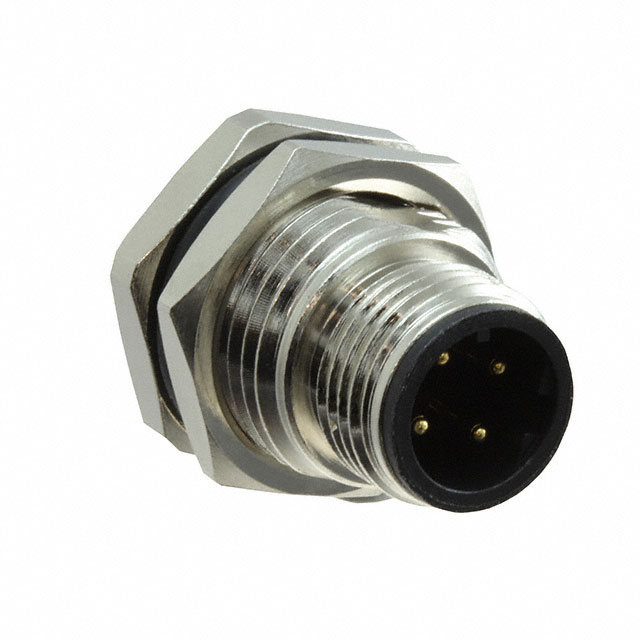

859RD04-103R004

Active

MH Connectors

M12 SENSOR CONN, MALE, 4POS, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

M12 SENSOR CONN, MALE, 4POS, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	859RD04-103R004

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	4 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Shielded
Voltage Rating	250 VDC

Part	Shell Material	Insert Material	Shell Finish	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Color	Connector Type	Primary Material	Shielding	Voltage Rating	Shell Size - Insert	Material Flammability Rating	Mounting Feature	Current Rating (Amps)	Number of Positions
MH Connectors 859RD04-203R004	Brass	Polybutylene Terephthalate (PBT)	Nickel	Brass	85 °C	-40 °C	D	Gold	10 çin	0.25 çm	IP67 - Dust Tight Waterproof	Silver	Female Sockets Plug	Metal	Shielded	250 VDC	M12-4	UL94 V-0	Bulkhead - Front Side Nut	4 A	4
MH Connectors 859RD04-103R004	Brass	Polybutylene Terephthalate (PBT)	Nickel	Brass	85 °C	-40 °C	D	Gold	10 çin	0.25 çm	IP67 - Dust Tight Waterproof	Silver	Male Pins Receptacle	Metal	Shielded	250 VDC	M12-4	UL94 V-0	Bulkhead - Front Side Nut	4 A	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
