R123153000

Active

Radiall USA, Inc.

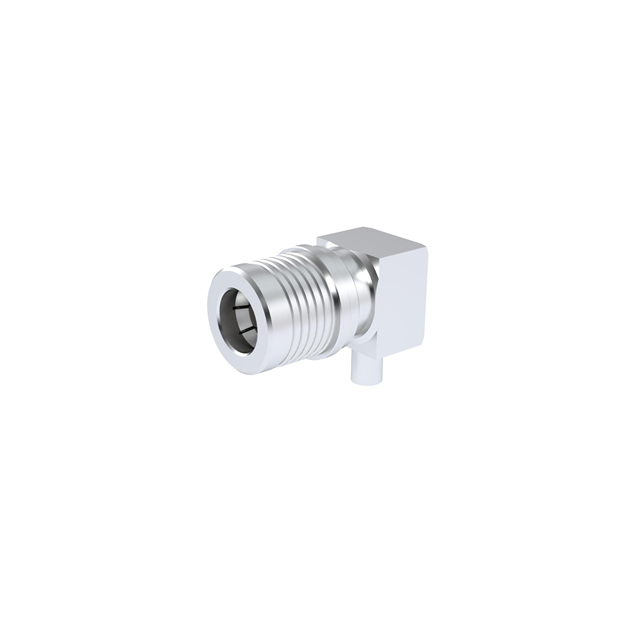

QMA / RIGHT ANGLE PLUG SOLDER TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA / RIGHT ANGLE PLUG SOLDER TY

Technical Specifications

Parameters and characteristics for this part

Specification	R123153000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Shield Termination	Contact Termination	Cable Group	Impedance	Center Contact Plating	Housing Color	Body Material	Fastening Type	Frequency - Max [Max]	Body Finish	Dielectric Material	Mounting Type	Connector Type	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Voltage Rating
Radiall USA, Inc. R123153003	Solder	Solder	RG-405 (.085" Semi Rigid)	50 Ohms	Gold	Gold	Brass	Snap-On	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	250 VDC
Radiall USA, Inc. R123153000W	Solder	Solder	RG-405 (.085" Semi Rigid)	50 Ohms	Gold	Silver	Brass	Snap-On	6000 MHz	White Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	250 VDC
Radiall USA, Inc. R123153000	Solder	Solder	RG-405 (.085" Semi Rigid)	50 Ohms	Gold	Silver	Brass	Snap-On	6000 MHz	White Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	250 VDC
Radiall USA, Inc. R123154000	Solder	Solder		50 Ohms	Gold	Silver	Brass	Snap-On	6000 MHz	White Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.29

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
