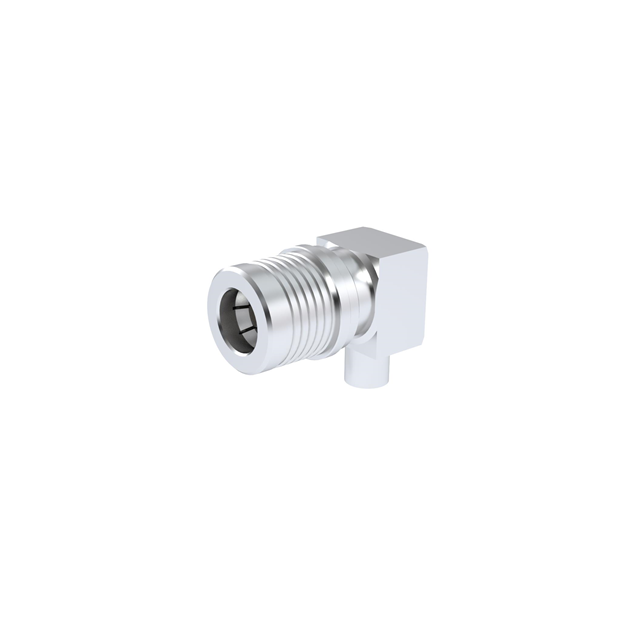

R123154000

Active

Radiall USA, Inc.

QMA / RIGHT ANGLE PLUG SOLDER TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA / RIGHT ANGLE PLUG SOLDER TY

Technical Specifications

Parameters and characteristics for this part

Specification	R123154000

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Shield Termination	Contact Termination	Cable Group	Impedance	Center Contact Plating	Housing Color	Body Material	Fastening Type	Frequency - Max [Max]	Body Finish	Dielectric Material	Mounting Type	Connector Type	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Voltage Rating
Radiall USA, Inc. R123153003	Solder	Solder	RG-405 (.085" Semi Rigid)	50 Ohms	Gold	Gold	Brass	Snap-On	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	250 VDC
Radiall USA, Inc. R123153000W	Solder	Solder	RG-405 (.085" Semi Rigid)	50 Ohms	Gold	Silver	Brass	Snap-On	6000 MHz	White Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	250 VDC
Radiall USA, Inc. R123153000	Solder	Solder	RG-405 (.085" Semi Rigid)	50 Ohms	Gold	Silver	Brass	Snap-On	6000 MHz	White Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	250 VDC
Radiall USA, Inc. R123154000	Solder	Solder		50 Ohms	Gold	Silver	Brass	Snap-On	6000 MHz	White Bronze	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Male Pin Plug	1	-40 °C	105 ░C	Brass	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.94

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
