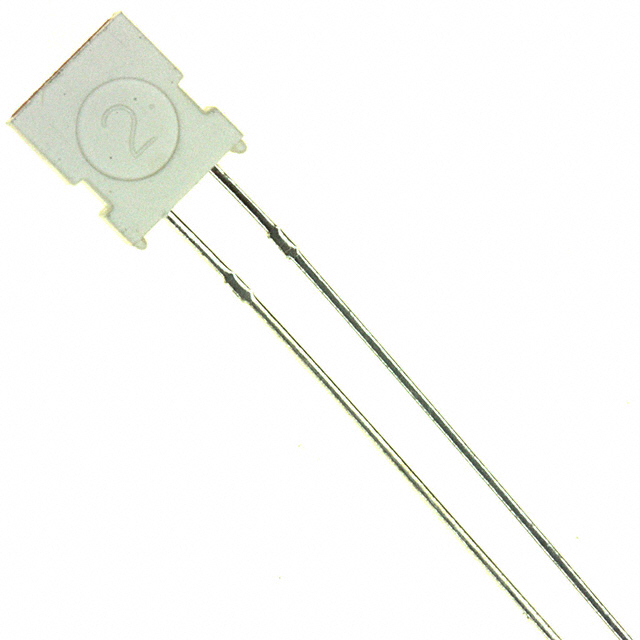

SSL-LX4673SRD-LA20

Active

Lumex Opto/Components Inc.

LED RED DIFF RECT 4MMX7MM T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RED DIFF RECT 4MMX7MM T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

LED GRN/RED DIFF RECT 4X7MM T/H

Part	Height (Max) [Max] [z]	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Mounting Type	Configuration	Lens Color	Wavelength - Peak	Viewing Angle	Supplier Device Package [x]	Supplier Device Package [y]	Color	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX4673IGW-LA20	6.8 mm	Radial	20 mA, 20 mA	2 V, 2.2 V	10mcd Green, 10mcd Red	Through Hole	Bidirectional	White	565 nm, 635 nm	100 °	4 mm	7 mm	Green, Red	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused
Lumex Opto/Components Inc. SSL-LX4673GD-LA20	6.8 mm	Radial	20 mA	2.2 V		Through Hole	Standard	Green	565 nm	100 °	4 mm	7 mm	Green	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	6 mcd
Lumex Opto/Components Inc. SSL-LX4673SYD-LA20	6.8 mm	Radial	20 mA	2 V		Through Hole	Standard	Yellow	590 nm	100 °	4 mm	7 mm	Yellow	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	100 mcd
Lumex Opto/Components Inc. SSL-LX4673ID-LA20	6.8 mm	Radial	20 mA	2 V		Through Hole	Standard	Red	635 nm	100 °	4 mm	7 mm	Red	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	12 mcd
Lumex Opto/Components Inc. SSL-LX4673YD-LA20	6.8 mm	Radial	20 mA	2.1 V		Through Hole	Standard	Yellow	585 nm	100 °	4 mm	7 mm	Yellow	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	6 mcd
Lumex Opto/Components Inc. SSL-LX4673SRD-LA20	6.8 mm	Radial	20 mA	1.7 V		Through Hole	Standard	Red	660 nm	100 °	4 mm	7 mm	Red	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	60 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red LED Indication - Discrete 1.7V Radial
