SSL-LX4673ID-LA20

Active

Lumex Opto/Components Inc.

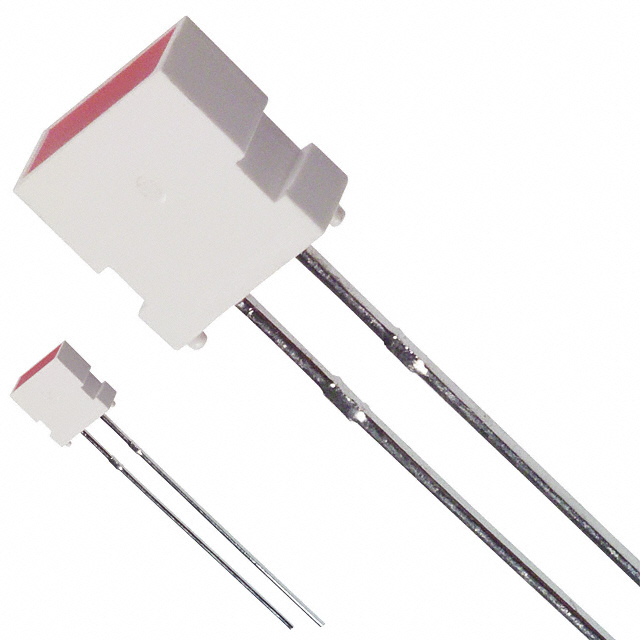

LED RED DIFF RECT 4MMX7MM T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RED DIFF RECT 4MMX7MM T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red LED Indication - Discrete 2V Radial

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED GRN/RED DIFF RECT 4X7MM T/H

Part	Height (Max) [Max] [z]	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Mounting Type	Configuration	Lens Color	Wavelength - Peak	Viewing Angle	Supplier Device Package [x]	Supplier Device Package [y]	Color	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX4673IGW-LA20	6.8 mm	Radial	20 mA, 20 mA	2 V, 2.2 V	10mcd Green, 10mcd Red	Through Hole	Bidirectional	White	565 nm, 635 nm	100 °	4 mm	7 mm	Green, Red	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused
Lumex Opto/Components Inc. SSL-LX4673GD-LA20	6.8 mm	Radial	20 mA	2.2 V		Through Hole	Standard	Green	565 nm	100 °	4 mm	7 mm	Green	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	6 mcd
Lumex Opto/Components Inc. SSL-LX4673SYD-LA20	6.8 mm	Radial	20 mA	2 V		Through Hole	Standard	Yellow	590 nm	100 °	4 mm	7 mm	Yellow	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	100 mcd
Lumex Opto/Components Inc. SSL-LX4673ID-LA20	6.8 mm	Radial	20 mA	2 V		Through Hole	Standard	Red	635 nm	100 °	4 mm	7 mm	Red	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	12 mcd
Lumex Opto/Components Inc. SSL-LX4673YD-LA20	6.8 mm	Radial	20 mA	2.1 V		Through Hole	Standard	Yellow	585 nm	100 °	4 mm	7 mm	Yellow	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	6 mcd
Lumex Opto/Components Inc. SSL-LX4673SRD-LA20	6.8 mm	Radial	20 mA	1.7 V		Through Hole	Standard	Red	660 nm	100 °	4 mm	7 mm	Red	Rectangle with Flat Top	6.15 mm	3.65 mm	Diffused	60 mcd
