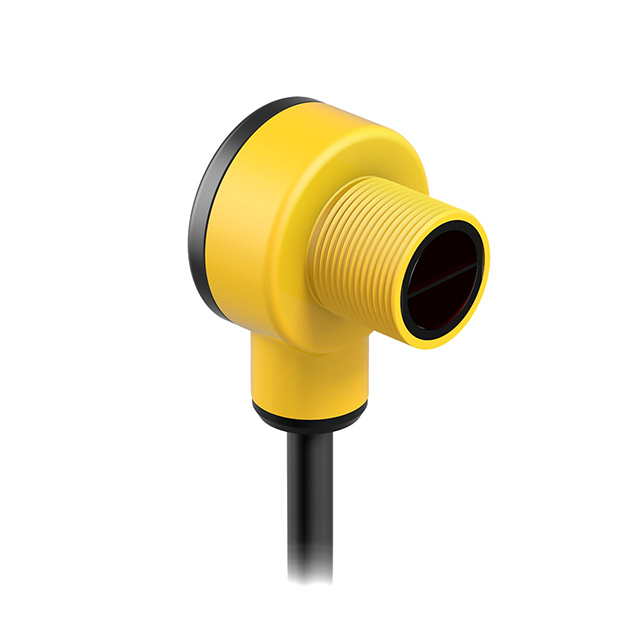

T18SP6D
ObsoleteBANNER ENGINEERING
PHOTO SEN 500MM COMP PNP
T18SP6D
ObsoleteBANNER ENGINEERING
PHOTO SEN 500MM COMP PNP
Description
General part information
T18SP6 Series
Diffuse Optical Sensor 19.685" (500mm) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | T18SP6D |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IEC IP69K, NEMA 6P, IEC IP67, IEC, IP69K, IP67 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 880 nm |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Response Time | 3 ms |
| Sensing Distance | 19.685 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
