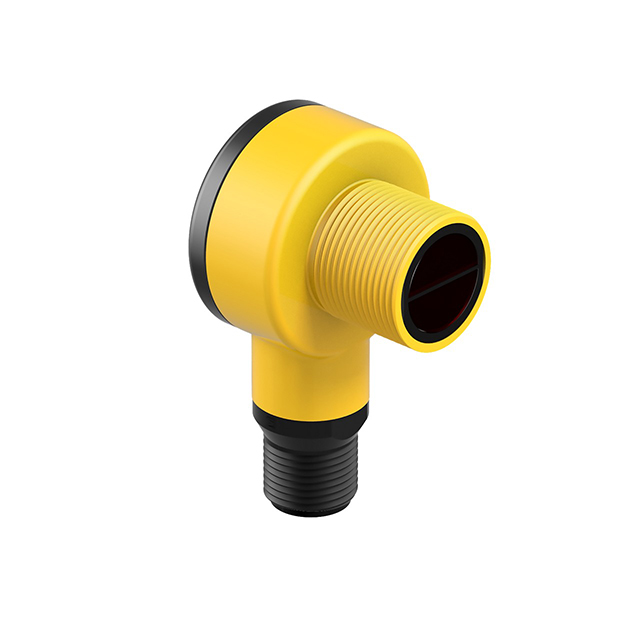

T18SP6DQ

T18SP6DQ

Obsolete

BANNER ENGINEERING

PHOTO SEN 500MM COMP PNP

T18SP6DQ

T18SP6DQ

Obsolete

BANNER ENGINEERING

PHOTO SEN 500MM COMP PNP

Description Specifications Series Pricing CAD Documents

Description

General part information

T18SP6 Series

Diffuse Optical Sensor 19.685" (500mm) PNP - Dark-ON/Light-ON

Technical Specifications

Parameters and characteristics for this part

Specification	T18SP6DQ

Adjustment Type	Adjustable, Potentiometer
Connection Method	Connector
Ingress Protection	IP69K, NEMA 6P
Light Source	Infrared
Light Source Wavelength (Infrared)	880 nm
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Light-ON, PNP - Dark-ON
Response Time	3 ms
Sensing Distance	19.685 "
Sensing Method	Diffuse
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

T18SP6DQ | Datasheet

T18SP6 Series

Part	Ingress Protection	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output Configuration	Light Source	Response Time	Sensing Method	Adjustment Type	Operating Temperature (Min)	Operating Temperature (Max)	Cable Length	Sensing Distance	Connection Method	Light Source Wavelength (Infrared)
BANNER ENGINEERING T18SP6L	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	Infrared	3 ms	NonPolarized Retroreflective	Adjustable Potentiometer	-40 °C	70 °C	78.74 in	78.74 "	Cable
BANNER ENGINEERING T18SP6FF100Q	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Light-ON PNP - Dark-ON	Infrared	3 ms	Background Suppression		-40 °C	70 °C		3.937 "	Connector	880 nm
BANNER ENGINEERING T18SP6FF100QPMA	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	Infrared	3 ms	Background Suppression		-40 °C	70 °C		3.937 "	Connector
BANNER ENGINEERING T18SP6FF50Q	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Light-ON PNP - Dark-ON	Infrared	3 ms	Background Suppression		-40 °C	70 °C		1.969 "	Connector	880 nm
BANNER ENGINEERING T18SP6DQ	IP69K NEMA 6P	10 VDC	30 VDC	Light-ON PNP - Dark-ON	Infrared	3 ms	Diffuse	Adjustable Potentiometer	-40 °C	70 °C		19.685 "	Connector	880 nm
BANNER ENGINEERING T18SP6D	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Light-ON PNP - Dark-ON	Infrared	3 ms	Diffuse	Adjustable Potentiometer	-40 °C	70 °C	78.74 in	19.685 "	Cable	880 nm
BANNER ENGINEERING T18SP6LPQP	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	Red LED	3 ms	Polarized Retroreflective		-40 °C	70 °C		78.74 "	Connector
BANNER ENGINEERING T18SP6LQ	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Light-ON PNP - Dark-ON	Infrared	3 ms	NonPolarized Retroreflective	Adjustable Potentiometer	-40 °C	70 °C		78.74 "	Connector	950 nm
BANNER ENGINEERING T18SP6RQ	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Light-ON PNP - Dark-ON	Infrared	3 ms	Through-Beam		-40 °C	70 °C		787.402 "	Connector	950 nm
BANNER ENGINEERING T18SP6R	IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P	10 VDC	30 VDC	Light-ON PNP - Dark-ON	Infrared	3 ms	Through-Beam		-40 °C	70 °C	78.74 in	787.402 "	Cable	950 nm
