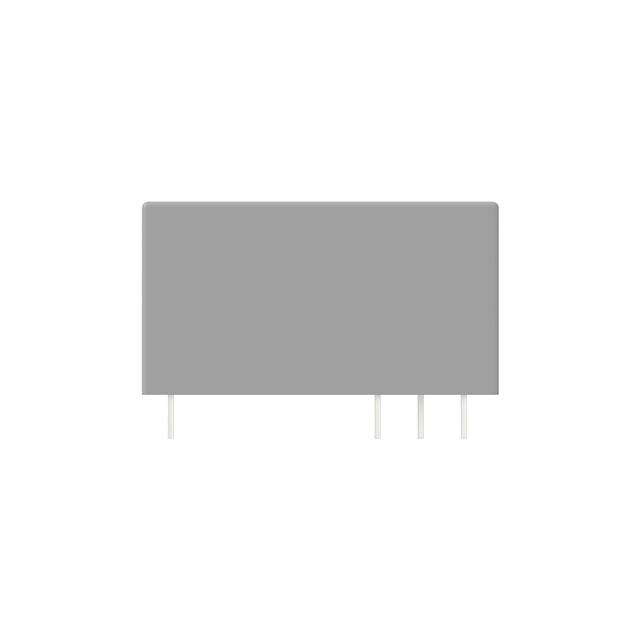

RELAY GEN PURPOSE SPDT 12A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1415539-4
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 12A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1415539-4 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 16.7 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1440 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 4800 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
RT1140 Series
| Part | Load - Max Switching | Coil Resistance | Contact Form | Approval Agency | Mounting Type | Contact Rating (Current) | Coil Current | Termination Style | Must Operate Voltage | Coil Type | Seal Rating | Contact Material | Release Time | Relay Type | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Coil Voltage | Operate Time | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Potter & Brumfield Relays | 4800 VA | 360 Ohms | SPDT (1 Form C) | CQC CSA cURus VDE | Through Hole | 12 A | 33.3 mA | PC Pin | 8.4 VDC | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | 6 ms | General Purpose | 1.2 VDC | 85 °C | -40 °C | 400 VAC | 12 VDC | 8 ms | Class F |
TE Connectivity Potter & Brumfield Relays | 4800 VA | 62 Ohms | SPDT (1 Form C) | CQC CSA cURus VDE | Through Hole | 12 A | 80.6 mA | PC Pin | 3.5 VDC | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | 6 ms | General Purpose | 0.5 VDC | 85 °C | -40 °C | 400 VAC | 5 VDC | 8 ms | Class F |
TE Connectivity Potter & Brumfield Relays | 4800 VA | 1440 Ohms | SPDT (1 Form C) | CQC CSA cURus VDE | Through Hole | 12 A | 16.7 mA | PC Pin | 16.8 VDC | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | 6 ms | General Purpose | 2.4 VDC | 85 °C | -40 °C | 400 VAC | 24 VDC | 8 ms | Class F |
TE Connectivity Potter & Brumfield Relays | 4800 VA | 1440 Ohms | SPDT (1 Form C) | CQC CSA cURus VDE | Through Hole | 12 A | 16.7 mA | PC Pin | 16.8 VDC | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | 6 ms | General Purpose | 2.4 VDC | 85 °C | -40 °C | 400 VAC | 24 VDC | 8 ms | Class F |
TE Connectivity Potter & Brumfield Relays | 4800 VA | 770 Ohms | SPDT (1 Form C) | CQC CSA cURus VDE | Through Hole | 12 A | 23.4 mA | PC Pin | 12.6 VDC | Non Latching | Sealed - Flux Protection | Silver Nickel (AgNi) | 6 ms | General Purpose | 1.8 VDC | 85 °C | -40 °C | 400 VAC | 18 VDC | 8 ms | Class F |
