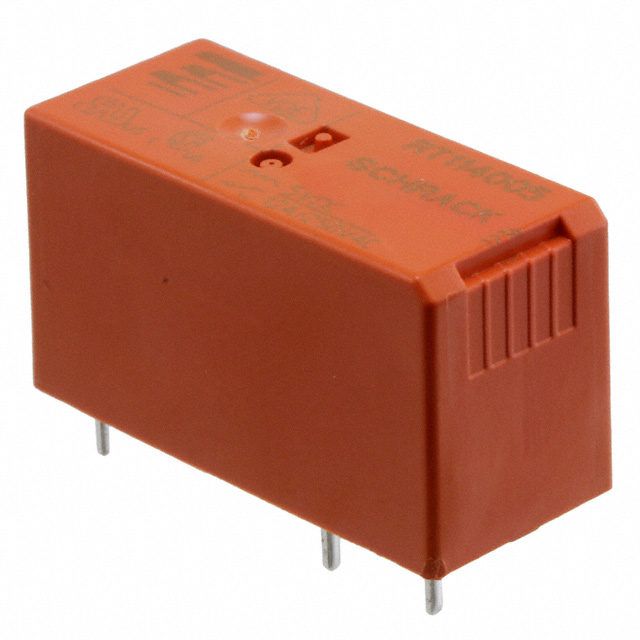

RT114005
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 12A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT114005
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 12A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT114005 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 80.6 mA |
| Coil Insulation | Class F |
| Coil Resistance | 62 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 4800 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.24 | |
| 20 | $ 3.04 | |||
| 40 | $ 2.56 | |||
| 100 | $ 2.43 | |||
| 260 | $ 2.38 | |||
Description
General part information
RT1140 Series
General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
