SF1132-6027

Active

Amphenol SV Microwave

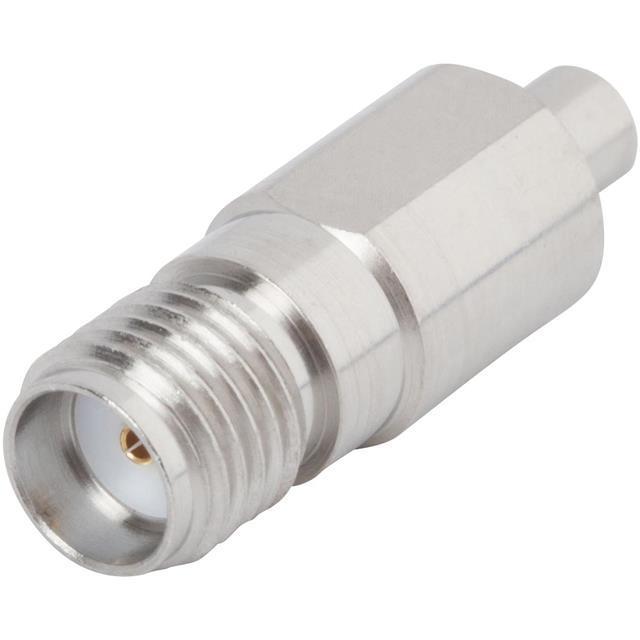

CONN ADAPT SMPM PLUG TO SMA JACK

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT SMPM PLUG TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	SF1132-6027

Adapter Series	SMPM to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMPM Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Full Detent
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Conversion Type	Center Contact Plating	Center Contact Material	Adapter Type	Mounting Type	Dielectric Material	Mating Cycles	Frequency - Max [Max]	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Adapter Series	Fastening Type	Impedance	Style	Features
Amphenol SV Microwave SF1132-6078	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	40 GHz	SMPM Plug Male Pin	2.92 mm	OS-2.9 Jack Female Socket	Stainless Steel	-65 ░C	165 °C	SMPM	2.92 mm	Bayonet Lock Threaded	50 Ohms	Straight
Amphenol SV Microwave SF1132-6070	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	65 GHz	SMPM Plug Male Pin		1.85mm Jack Female Socket	Stainless Steel	-65 ░C	165 °C	SMPM	1.85 mm	Snap-On Threaded	50 Ohms	Straight	Smooth Bore
Amphenol SV Microwave SF1132-6027	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)		18 GHz	SMPM Plug Male Pin		Female Socket SMA Jack	Stainless Steel			SMPM to SMA		Snap-On Threaded	50 Ohms	Straight	Full Detent
Amphenol SV Microwave SF1132-6069	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	65 GHz	SMPM Plug Male Pin		1.85mm Jack Female Socket	Stainless Steel	-65 ░C	165 °C	SMPM	1.85 mm	Snap-On Threaded	50 Ohms	Straight	Full Detent

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMPM Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
