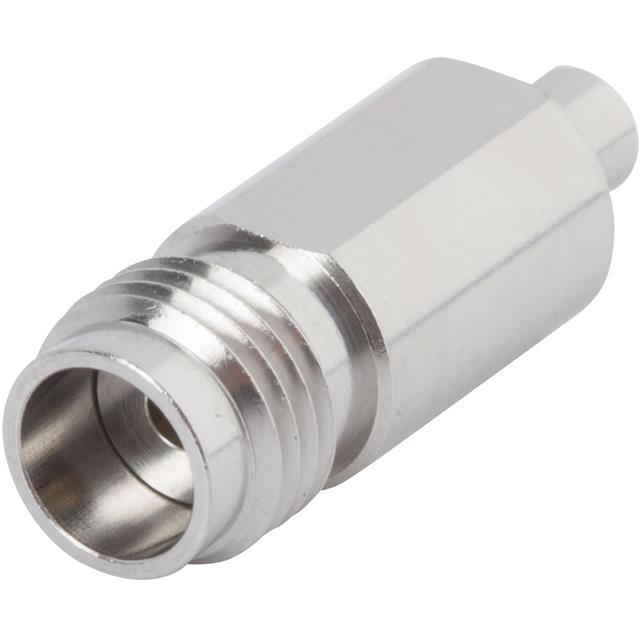

SF1132-6070

Active

Amphenol SV Microwave

COAX ADAPT 1.85MM TO SMPM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

COAX ADAPT 1.85MM TO SMPM

Technical Specifications

Parameters and characteristics for this part

Specification	SF1132-6070

Adapter Series	1.85 mm
Adapter Series	SMPM
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMPM Plug, Male Pin
Convert To (Adapter End)	Female Socket, 1.85mm Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Smooth Bore
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Conversion Type	Center Contact Plating	Center Contact Material	Adapter Type	Mounting Type	Dielectric Material	Mating Cycles	Frequency - Max [Max]	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Adapter Series	Fastening Type	Impedance	Style	Features
Amphenol SV Microwave SF1132-6078	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	40 GHz	SMPM Plug Male Pin	2.92 mm	OS-2.9 Jack Female Socket	Stainless Steel	-65 ░C	165 °C	SMPM	2.92 mm	Bayonet Lock Threaded	50 Ohms	Straight
Amphenol SV Microwave SF1132-6070	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	65 GHz	SMPM Plug Male Pin		1.85mm Jack Female Socket	Stainless Steel	-65 ░C	165 °C	SMPM	1.85 mm	Snap-On Threaded	50 Ohms	Straight	Smooth Bore
Amphenol SV Microwave SF1132-6027	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)		18 GHz	SMPM Plug Male Pin		Female Socket SMA Jack	Stainless Steel			SMPM to SMA		Snap-On Threaded	50 Ohms	Straight	Full Detent
Amphenol SV Microwave SF1132-6069	Between Series	Gold	Beryllium Copper	Plug to Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	500	65 GHz	SMPM Plug Male Pin		1.85mm Jack Female Socket	Stainless Steel	-65 ░C	165 °C	SMPM	1.85 mm	Snap-On Threaded	50 Ohms	Straight	Full Detent

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMPM Plug, Male Pin To 1.85mm Jack, Female Socket 50 Ohms
