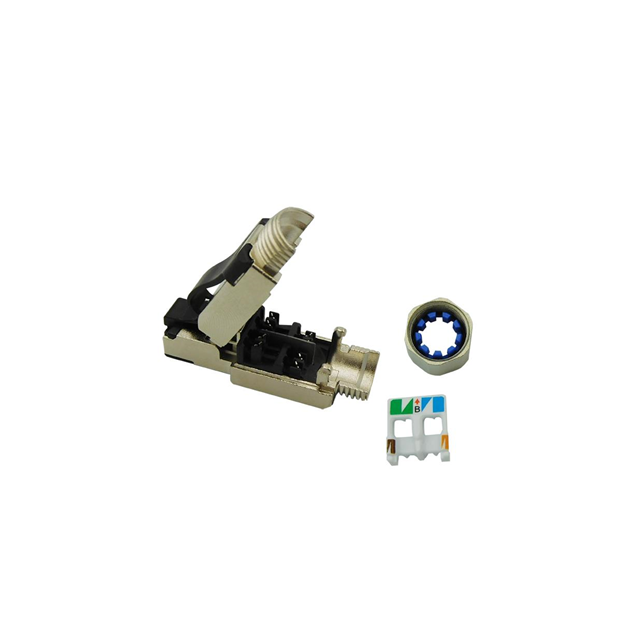

SS-39300-009

Active

BEL MAGNETIC SOLUTIONS

RJ45 CRYSTAL HEAD SHIELDED CAT8.1 GOLD PHOSPHOR BRONZE ALLOY ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Drawing EN +1

SS-39300-009

Active

BEL MAGNETIC SOLUTIONS

RJ45 CRYSTAL HEAD SHIELDED CAT8.1 GOLD PHOSPHOR BRONZE ALLOY ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-39300-009

Cable Type	Round Cable, Solid, Stranded Wires
Color	Silver
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze Alloy
Features	Strain Relief
Housing Material	Zinc Alloy
Length [x]	44.1 mm
Length [x]	1.736 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat8.1
Shielding	Shielded
Termination	IDC
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

SS-39300 Series

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Termination	Housing Material	Number of Positions/Contacts	Color	Features	Cable Type	Length	Length	Ratings	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Length [x]	Length [x]
BEL MAGNETIC SOLUTIONS SS-39300-013	Unshielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Thermoplastic	8p8c (RJ45 Ethernet)	Gray	Strain Relief	Round Cable Solid Stranded Wires	49.53 mm	1.95 in	Cat5e	Plug
BEL MAGNETIC SOLUTIONS SS-39300-014	Unshielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Thermoplastic	8p8c (RJ45 Ethernet)	Gray	Strain Relief	Round Cable Solid Stranded Wires	49.53 mm	1.95 in	Cat6	Plug
BEL MAGNETIC SOLUTIONS SS-39300-004	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat6a	Plug	22 AWG	26 AWG
BEL MAGNETIC SOLUTIONS SS-39300-009	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat8.1	Plug	22 AWG	26 AWG	44.1 mm	1.736 in
BEL MAGNETIC SOLUTIONS SS-39300-002	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat6a	Plug			44.1 mm	1.736 in
BEL MAGNETIC SOLUTIONS SS-39300-010	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat8.1	Plug	22 AWG	26 AWG	44.1 mm	1.736 in
BEL MAGNETIC SOLUTIONS SS-39300-012	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat8.1	Plug	22 AWG	26 AWG	44.1 mm	1.736 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 21.35
LCSC	Piece	1	$ 50.36
		200	$ 19.49
		500	$ 18.81
		1000	$ 18.47
Newark	Each	10	$ 28.71
		25	$ 26.10
		50	$ 24.80
		100	$ 24.15
		250	$ 21.54
		500	$ 20.23
		1000	$ 17.88

Description

General part information

SS-39300 Series

RJ45 CRYSTAL HEAD SHIELDED CAT8.1 GOLD PHOSPHOR BRONZE ALLOY ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Documents

Technical documentation and resources

SS-39300-009

Deep-Dive with AI

SS-39300-009

Deep-Dive with AI

Technical Specifications

SS-39300 Series

Pricing

Description

SS-39300 Series

Documents

Technical Data Sheet EN

Drawing EN

Assembly Instructions EN

SS-39300 Series
