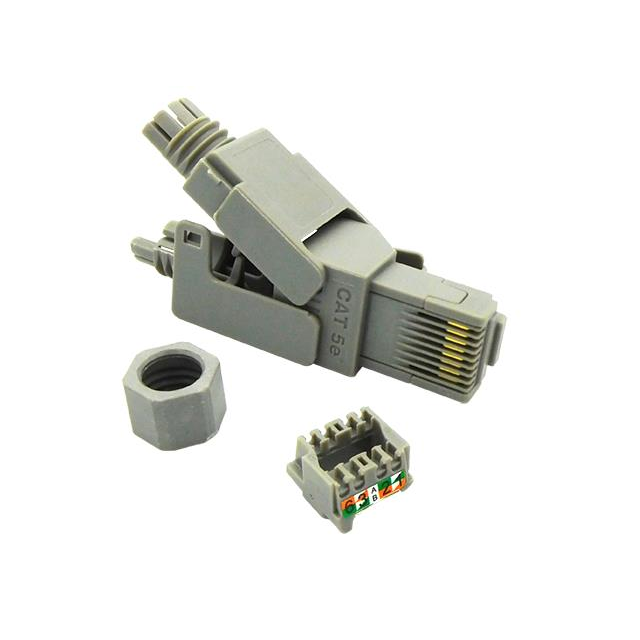

SS-39300-013

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT5E, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Drawing EN

SS-39300-013

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT5E, CABLE MOUNT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-39300-013

Cable Type	Round Cable, Solid, Stranded Wires
Color	Gray
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze Alloy
Features	Strain Relief
Housing Material	Thermoplastic
Length	49.53 mm
Length	1.95 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shielding	Unshielded
Termination	IDC

SS-39300 Series

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Termination	Housing Material	Number of Positions/Contacts	Color	Features	Cable Type	Length	Length	Ratings	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Length [x]	Length [x]
BEL MAGNETIC SOLUTIONS SS-39300-013	Unshielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Thermoplastic	8p8c (RJ45 Ethernet)	Gray	Strain Relief	Round Cable Solid Stranded Wires	49.53 mm	1.95 in	Cat5e	Plug
BEL MAGNETIC SOLUTIONS SS-39300-014	Unshielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Thermoplastic	8p8c (RJ45 Ethernet)	Gray	Strain Relief	Round Cable Solid Stranded Wires	49.53 mm	1.95 in	Cat6	Plug
BEL MAGNETIC SOLUTIONS SS-39300-004	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat6a	Plug	22 AWG	26 AWG
BEL MAGNETIC SOLUTIONS SS-39300-009	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat8.1	Plug	22 AWG	26 AWG	44.1 mm	1.736 in
BEL MAGNETIC SOLUTIONS SS-39300-002	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat6a	Plug			44.1 mm	1.736 in
BEL MAGNETIC SOLUTIONS SS-39300-010	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat8.1	Plug	22 AWG	26 AWG	44.1 mm	1.736 in
BEL MAGNETIC SOLUTIONS SS-39300-012	Shielded	50 µin	1.27 µm	Phosphor Bronze Alloy	Gold	IDC	Zinc Alloy	8p8c (RJ45 Ethernet)	Silver	Strain Relief	Round Cable Solid Stranded Wires			Cat8.1	Plug	22 AWG	26 AWG	44.1 mm	1.736 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.98
		10	$ 4.50
		25	$ 4.25
		50	$ 4.15
		100	$ 3.94
		280	$ 3.65

Description

General part information

SS-39300 Series

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat5e IDC

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Drawing EN

Datasheet
