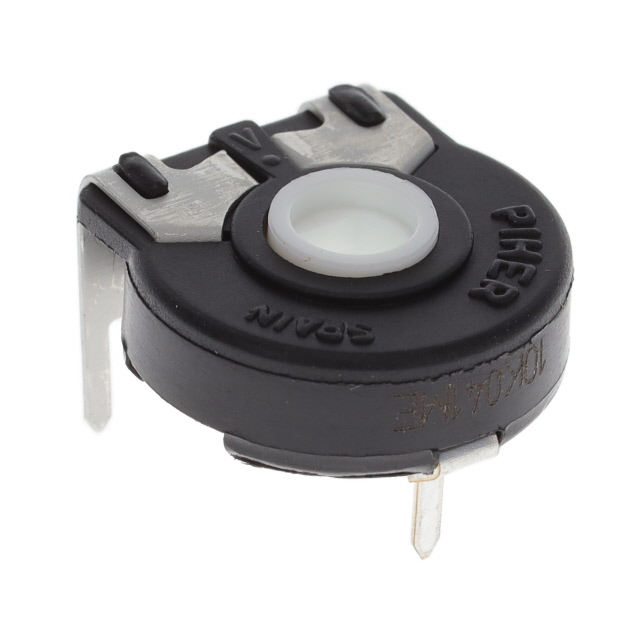

PT15NV02-103A2020-E-PM-S

Active

Amphenol Piher Sensing Systems

TRIMMER 10K OHM 0.25W PC PIN TOP

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 10K OHM 0.25W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Termination Style	Adjustment Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Temperature Coefficient	Mounting Type	Number of Turns	Resistive Material	Tolerance	Power (Watts)	Power (Watts)
Amphenol Piher Sensing Systems PT15NV02-253A2020-S	25 kOhms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-103A2020-E-PM-S	10000 Ohms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-503A2020-E-S	50 kOhms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-104A2020-E-S	100 kOhms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-254A2020-S	250 kOhms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-502A2020-S	5 kOhms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-103A2020-S	10000 Ohms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-103A2020-PM-S	10000 Ohms	PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW
Amphenol Piher Sensing Systems PT15NV02-504A2020-S		PC Pins	Top Adjustment	15 mm	0.591 in	300 ppm/°C	Through Hole	1	Carbon	20 %	0.25 W	250 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
