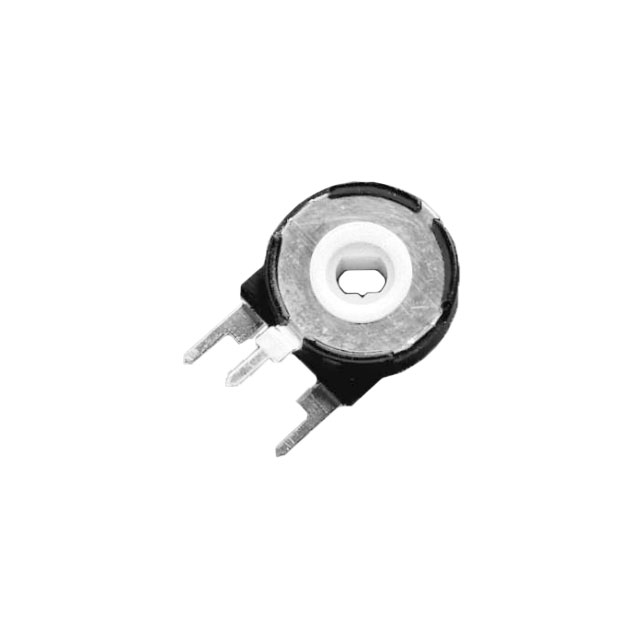

Specification	PT15NV02-501A2020-S

Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Number of Turns	1 turns
Power (Watts)	250 mW
Power (Watts) Options	1/4W
Resistance	500 Ohm
Resistive Material	Carbon
Size / Dimension Diameter	0.591 in
Size / Dimension Shape	Round
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

PT15NV02 Series

Part	Temperature Coefficient	Resistive Material	Resistance	Power (Watts)	Power (Watts) Options	Mounting Type	Tolerance	Termination Style	Size / Dimension Diameter	Size / Dimension Shape	Number of Turns	Adjustment Type
Amphenol Piher Sensing Systems PT15NV02-501A2020-S	300 ppm/°C	Carbon	500 Ohm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-253A2020-S	300 ppm/°C	Carbon	25 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-103A2020-E-PM-S	300 ppm/°C	Carbon	10 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-504A2020-E-S	300 ppm/°C	Carbon	500 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-503A2020-E-S	300 ppm/°C	Carbon	50 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-104A2020-E-S	300 ppm/°C	Carbon	100 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-254A2020-S	300 ppm/°C	Carbon	250 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-502A2020-S	300 ppm/°C	Carbon	5 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-103A2020-S	300 ppm/°C	Carbon	10 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
Amphenol Piher Sensing Systems PT15NV02-503A2020-S	300 ppm/°C	Carbon	50 kOhm	250 mW	1/4W	Through Hole	20 %	PC Pins	0.591 in	Round	1 turns	Top Adjustment
