GBPX-26
ActiveCurtis Industries

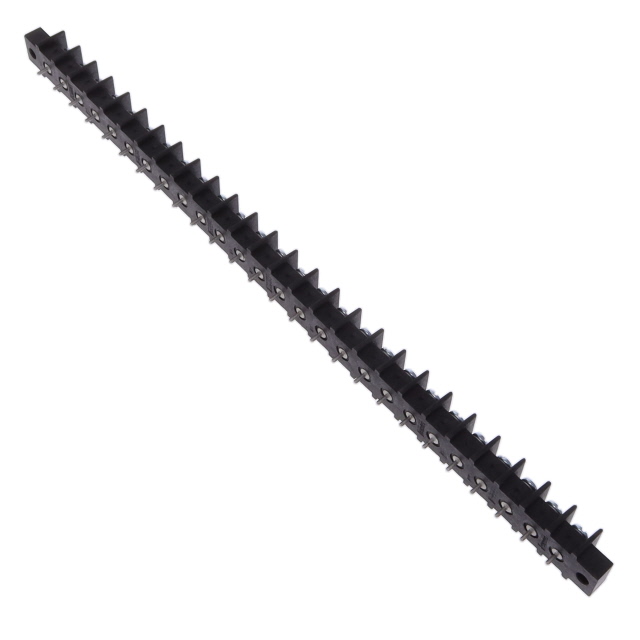

CONN BARRIER STRP 26CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBPX-26
ActiveCurtis Industries
CONN BARRIER STRP 26CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GBPX-26 | GBPX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 26 | 1 - 26 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 26 | 2 - 26 |
| Number of Wire Entries | - | 1 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
GBPX Series
CONN BARRIER STRIP 5CIRC 0.438"
| Part | Number of Wire Entries | Material - Insulation | Features | Number of Rows | Number of Circuits | Pitch [x] | Pitch [x] | Terminal Block Type | Operating Temperature | Wire Gauge [Min] | Wire Gauge [Max] | Color | Top Termination | Barrier Type | Current Rating (Amps) | Bottom Termination | Material Flammability Rating | Mounting Type | Terminal Screw Material | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries GBPX-5 | 5 | Polyphenylene Oxide (PPO) | Flange | 1 | 5 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-14 | 14 | Polyphenylene Oxide (PPO) | Flange | 1 | 14 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-18 | 18 | Polyphenylene Oxide (PPO) | Flange | 1 | 18 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-7 | 7 | Polyphenylene Oxide (PPO) | Flange | 1 | 7 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-13 | 13 | Polyphenylene Oxide (PPO) | Flange | 1 | 13 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-26 | 26 | Polyphenylene Oxide (PPO) | Flange | 1 | 26 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-6 | 6 | Polyphenylene Oxide (PPO) | Flange | 1 | 6 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-4 | 4 | Polyphenylene Oxide (PPO) | Flange | 1 | 4 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-2 | 2 | Polyphenylene Oxide (PPO) | Flange | 1 | 2 | 11.12 mm | 0.438 in | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | |
Curtis Industries GBPX-1 | Polyphenylene Oxide (PPO) | Flange | 1 | 1 | Barrier Block | 110 °C | 12 AWG | 22 AWG | Black | Screws | 2 Wall (Dual) | 20 A | PC Pin | UL94 V-0 | Chassis, Panel, Through Hole | Steel | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.01 | |
Description
General part information
GBPX Series
26 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
