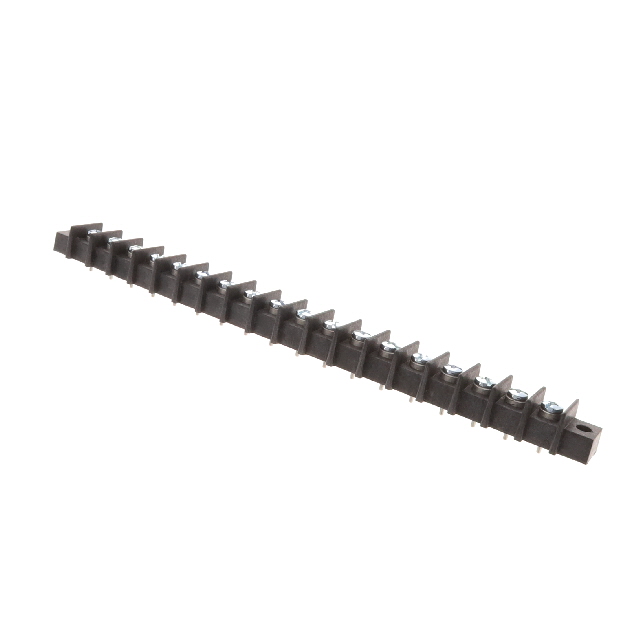

GBPX-18

Active

Curtis Industries

CONN BARRIER STRP 18CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBPX-18

Active

Curtis Industries

CONN BARRIER STRP 18CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GBPX-18	GBPX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	18	1 - 26
Number of Rows	1	1
Number of Wire Entries	18	2 - 26
Number of Wire Entries	-	1
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GBPX Series

CONN BARRIER STRIP 5CIRC 0.438"

Part	Number of Wire Entries	Material - Insulation	Features	Number of Rows	Number of Circuits	Pitch [x]	Pitch [x]	Terminal Block Type	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Color	Top Termination	Barrier Type	Current Rating (Amps)	Bottom Termination	Material Flammability Rating	Mounting Type	Terminal Screw Material	Number of Wire Entries [custom]
Curtis Industries GBPX-5	5	Polyphenylene Oxide (PPO)	Flange	1	5	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-14	14	Polyphenylene Oxide (PPO)	Flange	1	14	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-18	18	Polyphenylene Oxide (PPO)	Flange	1	18	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-7	7	Polyphenylene Oxide (PPO)	Flange	1	7	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-13	13	Polyphenylene Oxide (PPO)	Flange	1	13	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-26	26	Polyphenylene Oxide (PPO)	Flange	1	26	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-6	6	Polyphenylene Oxide (PPO)	Flange	1	6	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-4	4	Polyphenylene Oxide (PPO)	Flange	1	4	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-2	2	Polyphenylene Oxide (PPO)	Flange	1	2	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-1		Polyphenylene Oxide (PPO)	Flange	1	1			Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.78

Description

General part information

GBPX Series

18 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
