GBPX-7

Active

Curtis Industries

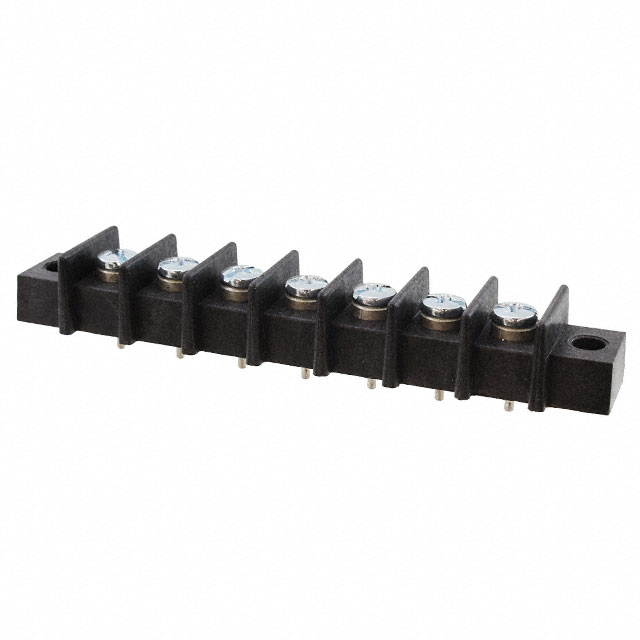

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBPX-7

Active

Curtis Industries

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.87
		10	$ 9.31
		30	$ 8.89
		50	$ 7.99
		100	$ 7.56
		250	$ 6.85
		500	$ 6.38
		1000	$ 6.03

Description

General part information

GBPX Series

7 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Specification	GBPX-7	GBPX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	7	1 - 26
Number of Rows	1	1
Number of Wire Entries	7	2 - 26
Number of Wire Entries	-	1
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part

Number of Wire Entries

Material - Insulation

Features

Number of Rows

Number of Circuits

Pitch [x]

Terminal Block Type

Operating Temperature

Wire Gauge [Min]

Wire Gauge [Max]

Color

Top Termination

Barrier Type

Current Rating (Amps)

Bottom Termination

Material Flammability Rating

Mounting Type

Terminal Screw Material

Number of Wire Entries [custom]

Curtis Industries

GBPX-5

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-14

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-18

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-7

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-13

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-26

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-6

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-4

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-2

Polyphenylene Oxide (PPO)

Flange

11.12 mm

0.438 in

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Curtis Industries

GBPX-1

Polyphenylene Oxide (PPO)

Flange

Barrier Block

110 °C

12 AWG

22 AWG

Black

Screws

2 Wall (Dual)

20 A

PC Pin

UL94 V-0

Chassis, Panel, Through Hole

Steel

Part	Number of Wire Entries	Material - Insulation	Features	Number of Rows	Number of Circuits	Pitch [x]	Pitch [x]	Terminal Block Type	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Color	Top Termination	Barrier Type	Current Rating (Amps)	Bottom Termination	Material Flammability Rating	Mounting Type	Terminal Screw Material	Number of Wire Entries [custom]
Curtis Industries GBPX-5	5	Polyphenylene Oxide (PPO)	Flange	1	5	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-14	14	Polyphenylene Oxide (PPO)	Flange	1	14	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-18	18	Polyphenylene Oxide (PPO)	Flange	1	18	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-7	7	Polyphenylene Oxide (PPO)	Flange	1	7	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-13	13	Polyphenylene Oxide (PPO)	Flange	1	13	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-26	26	Polyphenylene Oxide (PPO)	Flange	1	26	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-6	6	Polyphenylene Oxide (PPO)	Flange	1	6	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-4	4	Polyphenylene Oxide (PPO)	Flange	1	4	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-2	2	Polyphenylene Oxide (PPO)	Flange	1	2	11.12 mm	0.438 in	Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel
Curtis Industries GBPX-1		Polyphenylene Oxide (PPO)	Flange	1	1			Barrier Block	110 °C	12 AWG	22 AWG	Black	Screws	2 Wall (Dual)	20 A	PC Pin	UL94 V-0	Chassis, Panel, Through Hole	Steel	1
