794617-4

Active

TE Connectivity AMP Connectors

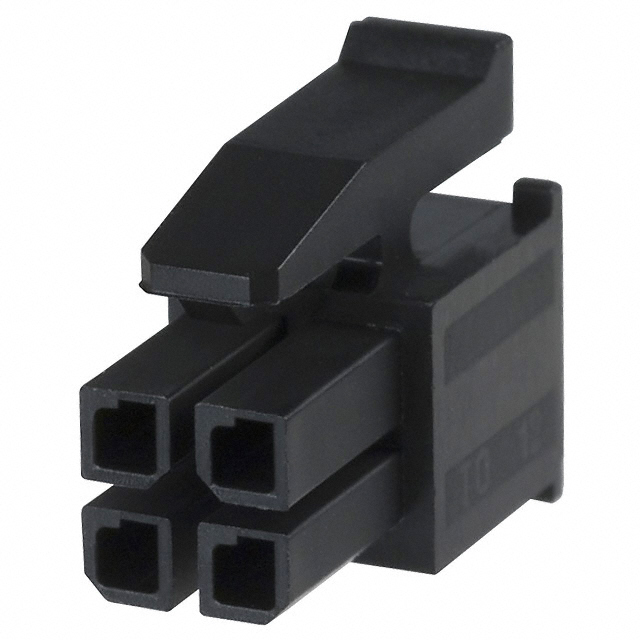

CONN RCPT HSG 4POS 3.00MM

Deep-Dive with AI

DocumentsSoft Shell Pin,Connectors Datasheet~Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.45
		10	$ 0.42
		25	$ 0.42
		50	$ 0.41
		100	$ 0.35
		250	$ 0.32
		500	$ 0.30
		1000	$ 0.26
		2500	$ 0.26

Description

General part information

794617 Series

4 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)

Documents

Technical documentation and resources

Soft Shell Pin,Connectors Datasheet~

Datasheet

Specification	794617-4	794617 Series

Color	Black	Black, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4 - 24
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3 mm	3 mm
Pitch [x]	0.118 in	0.118 in
Row Spacing [x]	0.118 in	0.118 in
Row Spacing [x]	3 mm	3 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Insulation Material	Number of Positions	Fastening Type	Mounting Type	Connector Type	Row Spacing [x]	Row Spacing [x]	Contact Type	Number of Rows	Note	Color	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 794617-6	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	6	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794617-8	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	18	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 2-794617-4	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	24	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794617-8	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	8	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2		Natural	3 mm	0.118 in
TE Connectivity AMP Connectors 794617-8	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	8	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 794617-4	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	4	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794617-0	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	10	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
