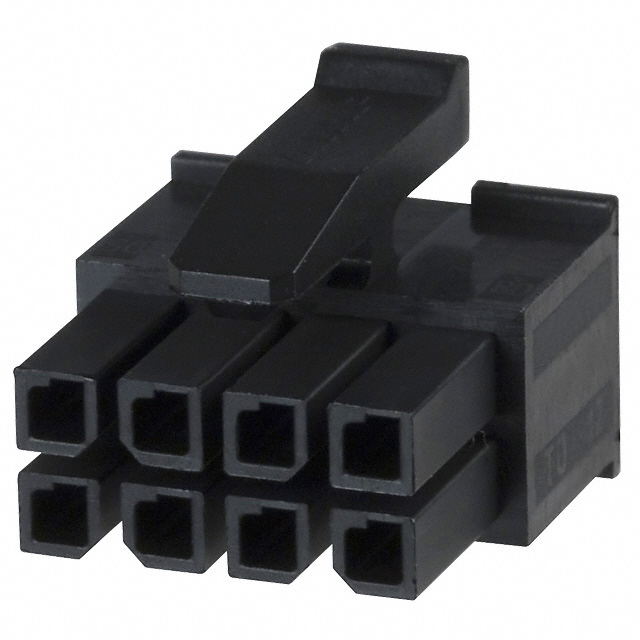

CONN RCPT HSG 8POS 3.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Soft Shell Pin,Connectors Datasheet~

794617-8

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 8POS 3.00MM

Deep-Dive with AI

DocumentsDatasheet Soft Shell Pin,Connectors Datasheet~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794617-8	794617 Series

Color	Black	Black, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	4 - 24
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3 mm	3 mm
Pitch [x]	0.118 in	0.118 in
Row Spacing [x]	0.118 in	0.118 in
Row Spacing [x]	3 mm	3 mm

794617 Series

CONN RCPT HSG 6POS 3.00MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Insulation Material	Number of Positions	Fastening Type	Mounting Type	Connector Type	Row Spacing [x]	Row Spacing [x]	Contact Type	Number of Rows	Note	Color	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 794617-6	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	6	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794617-8	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	18	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 2-794617-4	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	24	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794617-8	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	8	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2		Natural	3 mm	0.118 in
TE Connectivity AMP Connectors 794617-8	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	8	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 794617-4	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	4	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794617-0	-40 °C	105 ░C	Crimp	Polyamide (PA66), Nylon 6/6	10	Latch Lock	Free Hanging (In-Line)	Receptacle	0.118 in	3 mm	Female Socket	2	Contacts Not Included	Black	3 mm	0.118 in
