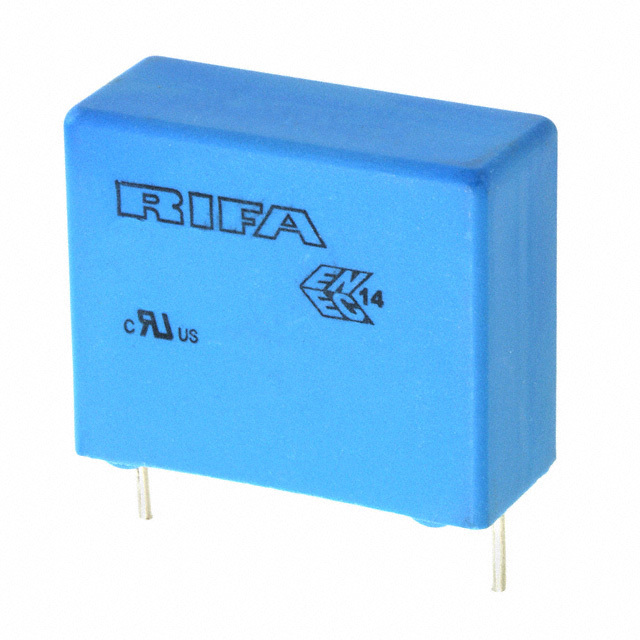

PHE844RD6220KR06L2

Active

KEMET

CAP FILM 0.22UF 10% 1KVDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.22UF 10% 1KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PHE844RD6220KR06L2

Applications	EMI, RFI Suppression
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	21.5 mm
Height - Seated (Max) [Max]	0.846 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	1.024 in
Size / Dimension [x]	26 mm
Size / Dimension [y]	11 mm
Size / Dimension [y]	0.433 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	440 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Voltage Rating - AC	Capacitance	Voltage Rating - DC	Voltage Rating - DC	Applications	Tolerance	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Mounting Type	Ratings	Size / Dimension [y]	Size / Dimension [x]
KEMET PHE844RD6220MR30L2	Metallized Polypropylene (PP)	-40 °C	105 ░C	1.024 in	26 mm	11 mm	0.433 in	Radial	480 V	0.22 µF	1 kVDC	1 kV	EMI RFI Suppression	20 %	PC Pins	21.5 mm	0.846 in	22.5 mm	0.886 in	Through Hole	X1
KEMET PHE844RD6220KR06L2	Metallized Polypropylene (PP)	-40 °C	105 ░C	1.024 in	26 mm	11 mm	0.433 in	Radial	440 V	0.22 µF	1 kVDC	1 kV	EMI RFI Suppression	10 %	PC Pins	21.5 mm	0.846 in	22.5 mm	0.886 in	Through Hole	X1
KEMET PHE844RD6100MR06L2	Metallized Polypropylene (PP)	-40 °C	105 ░C		1.024 in	0.315 in		Radial	440 V	100000 pF	1 kVDC	1 kV	EMI RFI Suppression	20 %	PC Pins	16 mm	0.63 in	22.5 mm	0.886 in	Through Hole	X1	8 mm	26 mm
KEMET PHE844RD6150MR06L2	Metallized Polypropylene (PP)	-40 °C	105 ░C	1.024 in	26 mm	9 mm	0.354 in	Radial	440 V	0.15 ÁF	1 kVDC	1 kV	EMI RFI Suppression	20 %	PC Pins	18.5 mm	0.728 in	22.5 mm	0.886 in	Through Hole	X1
KEMET PHE844RD6100MR30L2	Metallized Polypropylene (PP)	-40 °C	105 ░C		1.024 in	0.315 in		Radial	480 V	100000 pF	1 kVDC	1 kV	EMI RFI Suppression	20 %	PC Pins	16 mm	0.63 in	22.5 mm	0.886 in	Through Hole	X1	8 mm	26 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.22 µF Film Capacitor 440V 1000V (1kV) Polypropylene (PP), Metallized Radial
