PHE844RD6100MR30L2 - PHE844 Series

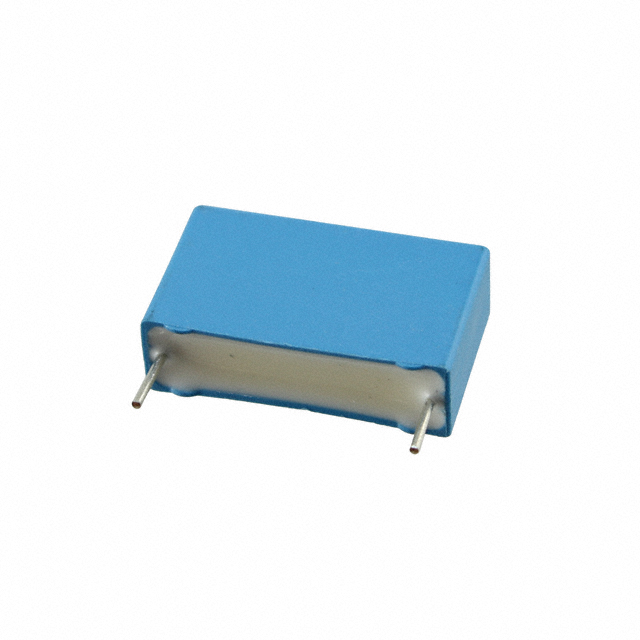

PHE844RD6100MR30L2

Active
KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.1 ΜF, ± 20%, X1, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsF844DH104M440ALW0LTechnical Data Sheet EN+2
PHE844RD6100MR30L2 - PHE844 Series

PHE844RD6100MR30L2

Active
KEMET

SAFETY CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.1 ΜF, ± 20%, X1, THROUGH HOLE

Deep-Dive with AI

DocumentsF844DH104M440ALW0LTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationPHE844RD6100MR30L2
ApplicationsEMI, RFI Suppression
Capacitance100000 pF
Dielectric MaterialMetallized, Polypropylene (PP)
Height - Seated (Max) [Max]0.63 in
Height - Seated (Max) [Max]16 mm
Lead Spacing22.5 mm
Lead Spacing0.886 in
Mounting TypeThrough Hole
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Package / CaseRadial
RatingsX1
Size / Dimension [x]26 mm
Size / Dimension [x]1.024 in
Size / Dimension [y]8 mm
Size / Dimension [y]0.315 in
TerminationPC Pins
Tolerance20 %
Voltage Rating - AC480 V
Voltage Rating - DC1 kVDC
Voltage Rating - DC1 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.49
10$ 1.12
40$ 1.02
352$ 0.79
704$ 0.67
1056$ 0.59
2464$ 0.55
4928$ 0.53
NewarkEach 1$ 1.71
10$ 0.94
25$ 0.86
50$ 0.80
100$ 0.72
500$ 0.65
1000$ 0.61
2500$ 0.58

Description

General part information

PHE844 Series

The PHE844 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0.For use as a electromagnetic interference (EMI) suppression filter in across-the-line applications requiring X1 safety classification. Suitable for use in situations where failure of the capacitor would not lead to danger of electric shock.
