5590PI-O2

Active

3M (TC)

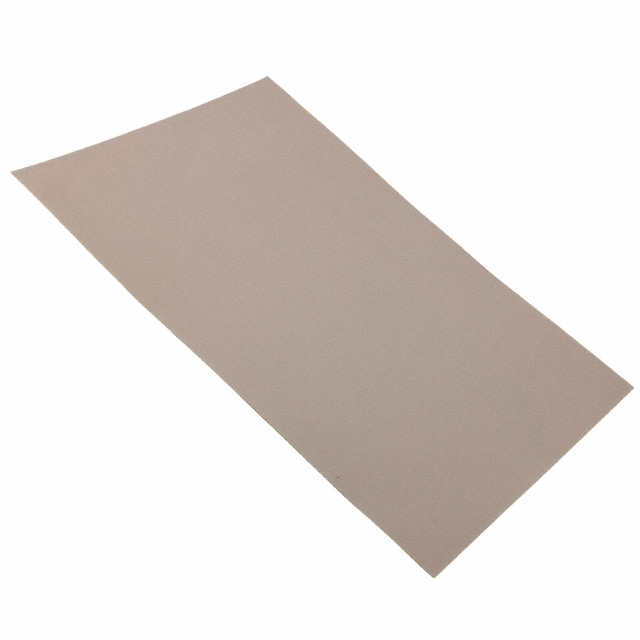

THERM PAD 350X230MM BRN

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 350X230MM BRN

Technical Specifications

Parameters and characteristics for this part

Specification	5590PI-O2

Adhesive	Tacky - One Side
Backing, Carrier	Polyimide
Color	Brown
Material	Acrylic Elastomer
Outline [x]	350 mm
Outline [y]	230 mm
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thermal Conductivity	3 W/m-K
Thickness	0.2 mm
Thickness	0.0079 in
Type	Interface Pad, Sheet

Part	Color	Type	Shelf Life Start	Thermal Resistivity	Thickness	Thickness	Material	Outline [x]	Outline [y]	Shape	Adhesive	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thermal Conductivity
3M (TC) 5590H-05-300MM	Gray White	Interface Pad Roll	Date of Manufacture	0.46 °C/W	0.0197 in	0.5 mm	Acrylic Elastomer	20 m	300 m	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F
3M (TC) 5590H-15	Gray	Transfer Tape Roll	Date of Manufacture		0.0591 "	1.5 mm	Acrylic Elastomer	20 m	240 mm	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F
3M (TC) 5590PI-O2	Brown	Interface Pad Sheet	Date of Manufacture		0.0079 in	0.2 mm	Acrylic Elastomer	350 mm	230 mm	Rectangular	Tacky - One Side	12 Months			Polyimide	70 °F	21 °C	3 W/m-K
3M (TC) 5590H-10	Gray	Transfer Tape Roll	Date of Manufacture		0.0394 in	1 mm	Acrylic Elastomer	20 m	240 mm	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F
3M (TC) 5590H-05	Gray	Transfer Tape Roll	Date of Manufacture		0.0197 in	0.5 mm	Acrylic Elastomer	20 m	240 mm	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2000	$ 19.24

General part information

Thermal Pad Brown 350.00mm x 230.00mm Rectangular Tacky - One Side
