5590H-05

Unknown

3M (TC)

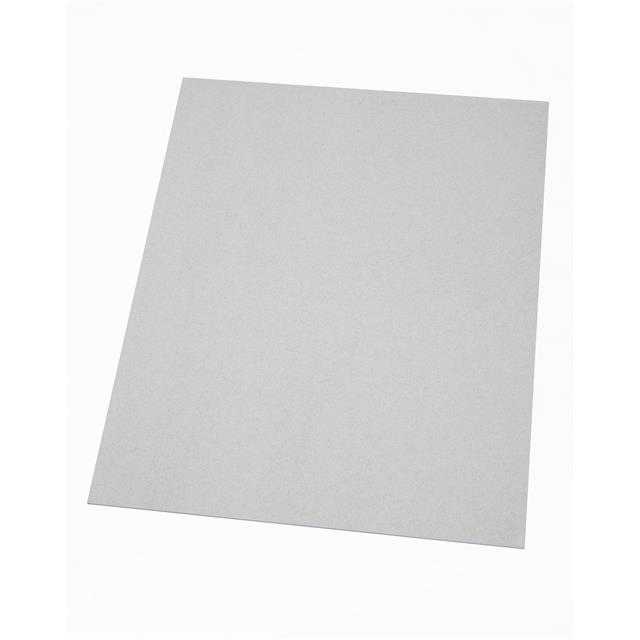

THERM PAD 20M X 240MM GRAY

Search across all available documentation for this part.

Unknown

3M (TC)

THERM PAD 20M X 240MM GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5590H-05

Adhesive	Tacky - Both Sides
Color	Gray
Material	Acrylic Elastomer
Outline [x]	20 m
Outline [y]	240 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	68 °F
Thickness	0.0197 in
Thickness	0.5 mm
Type	Transfer Tape, Roll

Part	Color	Type	Shelf Life Start	Thermal Resistivity	Thickness	Thickness	Material	Outline [x]	Outline [y]	Shape	Adhesive	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Backing, Carrier	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thermal Conductivity
3M (TC) 5590H-05-300MM	Gray White	Interface Pad Roll	Date of Manufacture	0.46 °C/W	0.0197 in	0.5 mm	Acrylic Elastomer	20 m	300 m	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F
3M (TC) 5590H-15	Gray	Transfer Tape Roll	Date of Manufacture		0.0591 "	1.5 mm	Acrylic Elastomer	20 m	240 mm	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F
3M (TC) 5590PI-O2	Brown	Interface Pad Sheet	Date of Manufacture		0.0079 in	0.2 mm	Acrylic Elastomer	350 mm	230 mm	Rectangular	Tacky - One Side	12 Months			Polyimide	70 °F	21 °C	3 W/m-K
3M (TC) 5590H-10	Gray	Transfer Tape Roll	Date of Manufacture		0.0394 in	1 mm	Acrylic Elastomer	20 m	240 mm	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F
3M (TC) 5590H-05	Gray	Transfer Tape Roll	Date of Manufacture		0.0197 in	0.5 mm	Acrylic Elastomer	20 m	240 mm	Rectangular	Tacky - Both Sides	24 Months	77 °F	68 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Pad Gray 20.00m x 240.00mm Rectangular Tacky - Both Sides
