8134-HC-5P2

Active

TE Connectivity AMP Connectors

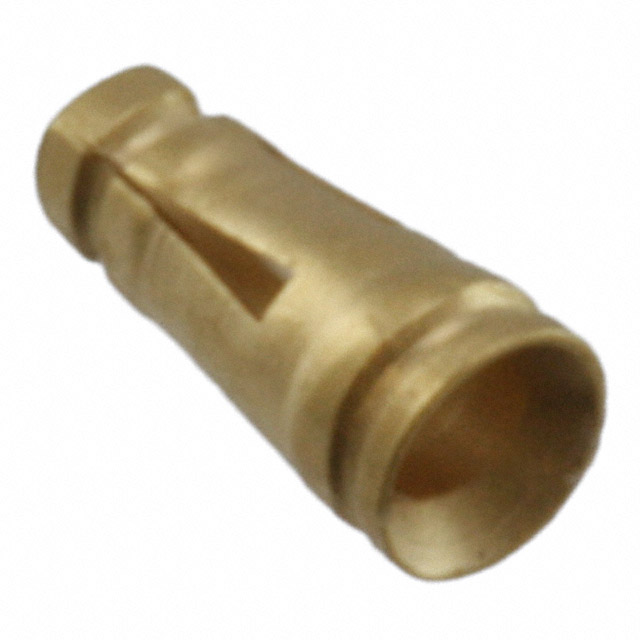

CONN PIN RCPT .016-.021 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8134-HC-5P2

Active

TE Connectivity AMP Connectors

CONN PIN RCPT .016-.021 PRESSFIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34
		10	$ 0.31
		25	$ 0.31
		50	$ 0.30
		100	$ 0.26
		250	$ 0.23
		500	$ 0.22
		1000	$ 0.19
		2500	$ 0.19

Description

General part information

8134 Series

Pin Receptacle Connector 0.016" ~ 0.021" (0.41mm ~ 0.53mm) No Tail Press-Fit

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8134-HC-5P2	8134 Series

Accepts Pin Diameter	-	0.64 - 0.89 mm
Accepts Pin Diameter	-	0.035 - 0.045 "
Accepts Pin Diameter	-	1.14 mm
Accepts Pin Diameter	-	0.025 - 0.035 "
Accepts Pin Diameter	-	0.89 mm
Accepts Pin Diameter [Max] [diameter]	0.53 mm	0.53 - 0.76 mm
Accepts Pin Diameter [Max] [diameter]	0.021 in	0.021 - 0.03 "
Accepts Pin Diameter [Min] [diameter]	0.016 in	0.016 - 0.02 "
Accepts Pin Diameter [Min] [diameter]	0.41 mm	0.41 - 0.51 mm
Accepts Square Pin Size	-	0.64 mm
Accepts Square Pin Size	-	0.025 in
Accepts Square Pin Size [x]	0.28 mm	0.28 mm
Accepts Square Pin Size [x]	0.011 in	0.011 in
Accepts Square Pin Size [y]	0.018 in	0.018 in
Accepts Square Pin Size [y]	0.46 mm	0.46 mm
Board Thickness	0.76 mm	0.76 - 1.27 mm
Board Thickness	0.03 in	0.03 - 0.05 in
Contact Finish	Gold	Tin, Gold, Tin-Lead
Contact Finish Thickness	0.63 µm	0.63 - 2.03 Ám
Contact Finish Thickness	24.8 µin	24.8 - 80 Áin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter	-	1.6 mm
Flange Diameter	-	0.063 in
Length - Overall [x]	2.39 mm	2.39 - 4.06 mm
Length - Overall [x]	0.094 in	0.094 - 0.16 in
Mounting Hole Diameter [diameter]	0.041 in	0.041 - 0.087 in
Mounting Hole Diameter [diameter]	1.04 mm	1.04 - 2.21 mm
Operating Temperature [Max]	125 °C	105 - 125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pin Hole Diameter [diameter]	0.66 mm	0.66 - 1.32 mm
Pin Hole Diameter [diameter]	0.026 in	0.026 - 0.052 in
Tail Type	No Tail	No Tail
Termination	Press-Fit	Press-Fit

8134 Series

CONN PIN RCPT .035-.045 PRESSFIT

Part	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Board Thickness	Board Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Accepts Pin Diameter [Max]	Accepts Square Pin Size [y]	Accepts Square Pin Size [x]	Accepts Square Pin Size [y]	Accepts Square Pin Size [x]	Flange Diameter [diameter]	Flange Diameter [diameter]
TE Connectivity AMP Connectors 8134-HC-12P3-LF	No Tail	80 Áin	2.03 Ám	0.89 mm	0.045 "	1.14 mm	0.035 "	0.087 in	2.21 mm	Tin	Press-Fit	4.06 mm	0.16 in	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in
TE Connectivity AMP Connectors 8134-HC-12P2	No Tail	24.8 µin	0.63 µm	0.89 mm	0.045 "	1.14 mm	0.035 "	0.082 in	2.08 mm	Gold	Press-Fit	3.96 mm	0.156 in	Beryllium Copper	-55 °C	125 °C	1.27 mm	0.05 in	1.32 mm	0.052 in
TE Connectivity AMP Connectors 8134-HC-6P3LF	No Tail	80 Áin	2.03 Ám					0.058 in	1.47 mm	Tin	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	105 ░C	0.76 mm	0.03 in	0.97 mm	0.038 "	0.76 mm	0.51 mm	0.03 "	0.02 "
TE Connectivity AMP Connectors 8134-HC-8P3-LF	No Tail	80 Áin	2.03 Ám	0.64 mm	0.035 in		0.025 "	0.058 in	1.47 mm	Tin	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	105 ░C	0.76 mm	0.03 in	1.07 mm	0.042 in					0.64 mm	0.025 in	0.89 mm
TE Connectivity AMP Connectors 8134-HC-5P2	No Tail	24.8 µin	0.63 µm					0.041 in	1.04 mm	Gold	Press-Fit	2.39 mm	0.094 in	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in	0.66 mm	0.026 in	0.53 mm	0.41 mm	0.021 in	0.016 in				0.018 in	0.28 mm	0.46 mm	0.011 in
TE Connectivity AMP Connectors 8134-HC-12P3	No Tail	80 Áin	2.03 Ám	0.89 mm	0.045 "	1.14 mm	0.035 "	0.082 in	2.08 mm	Tin-Lead	Press-Fit	3.96 mm	0.156 in	Beryllium Copper	-55 °C	105 ░C	1.27 mm	0.05 in	1.32 mm	0.052 in
TE Connectivity AMP Connectors 8134-HC-6P3	No Tail							0.063 in	1.6 mm	Tin-Lead	Press-Fit	3.56 mm	0.14 "	Beryllium Copper	-55 °C	105 ░C	0.76 mm	0.03 in	0.97 mm	0.038 "	0.76 mm	0.51 mm	0.03 "	0.02 "								1.6 mm	0.063 in
TE Connectivity AMP Connectors 8134-HC-6P2	No Tail	24.8 µin	0.63 µm					0.058 in	1.47 mm	Gold	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in	0.97 mm	0.038 "	0.76 mm	0.51 mm	0.03 "	0.02 "
TE Connectivity AMP Connectors 8134-HC-8P2	No Tail	24.8 µin	0.63 µm	0.64 mm	0.035 in		0.025 "	0.058 in	1.47 mm	Gold	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in	1.07 mm	0.042 in					0.64 mm	0.025 in	0.89 mm
