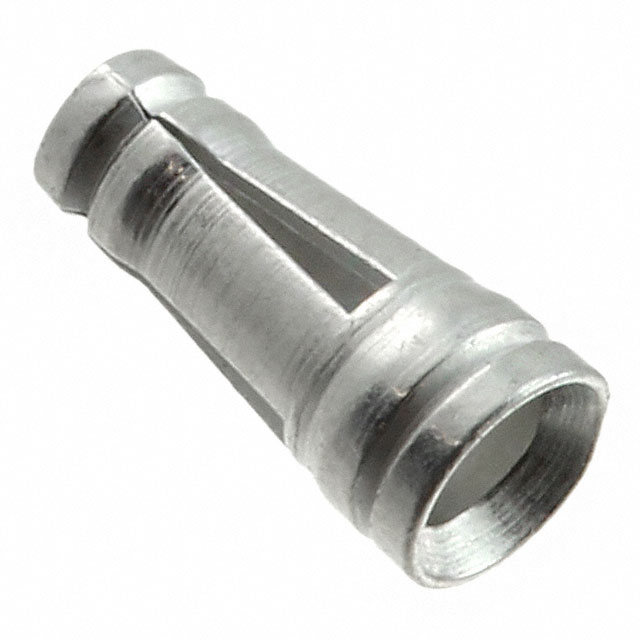

8134-HC-6P3LF

Obsolete

TE Connectivity AMP Connectors

CONN PIN RCPT .020-.030 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8134-HC-6P3LF

Obsolete

TE Connectivity AMP Connectors

CONN PIN RCPT .020-.030 PRESSFIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8134-HC-6P3LF	8134 Series

Accepts Pin Diameter	-	0.64 - 0.89 mm
Accepts Pin Diameter	-	0.035 - 0.045 "
Accepts Pin Diameter	-	1.14 mm
Accepts Pin Diameter	-	0.025 - 0.035 "
Accepts Pin Diameter	-	0.89 mm
Accepts Pin Diameter [Max] [diameter]	0.76 mm	0.53 - 0.76 mm
Accepts Pin Diameter [Max] [diameter]	0.03 "	0.021 - 0.03 "
Accepts Pin Diameter [Min] [diameter]	0.51 mm	0.41 - 0.51 mm
Accepts Pin Diameter [Min] [diameter]	0.02 "	0.016 - 0.02 "
Accepts Square Pin Size	-	0.64 mm
Accepts Square Pin Size	-	0.025 in
Accepts Square Pin Size	-	0.018 in
Accepts Square Pin Size	-	0.28 mm
Accepts Square Pin Size	-	0.46 mm
Accepts Square Pin Size	-	0.011 in
Board Thickness	0.76 mm	0.76 - 1.27 mm
Board Thickness	0.03 in	0.03 - 0.05 in
Contact Finish	Tin	Tin, Gold, Tin-Lead
Contact Finish Thickness	80 Áin	24.8 - 80 Áin
Contact Finish Thickness	2.03 Ám	0.63 - 2.03 Ám
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter	-	1.6 mm
Flange Diameter	-	0.063 in
Length - Overall [x]	3.45 mm	2.39 - 4.06 mm
Length - Overall [x]	0.136 "	0.094 - 0.16 in
Mounting Hole Diameter [diameter]	1.47 mm	1.04 - 2.21 mm
Mounting Hole Diameter [diameter]	0.058 in	0.041 - 0.087 in
Operating Temperature [Max]	105 ░C	105 - 125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pin Hole Diameter [diameter]	0.97 mm	0.66 - 1.32 mm
Pin Hole Diameter [diameter]	0.038 "	0.026 - 0.052 in
Tail Type	No Tail	No Tail
Termination	Press-Fit	Press-Fit

8134 Series

CONN PIN RCPT .035-.045 PRESSFIT

Part	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Board Thickness	Board Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Accepts Pin Diameter [Max]	Accepts Square Pin Size [y]	Accepts Square Pin Size [x]	Accepts Square Pin Size [y]	Accepts Square Pin Size [x]	Flange Diameter [diameter]	Flange Diameter [diameter]
TE Connectivity AMP Connectors 8134-HC-12P3-LF	No Tail	80 Áin	2.03 Ám	0.89 mm	0.045 "	1.14 mm	0.035 "	0.087 in	2.21 mm	Tin	Press-Fit	4.06 mm	0.16 in	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in
TE Connectivity AMP Connectors 8134-HC-12P2	No Tail	24.8 µin	0.63 µm	0.89 mm	0.045 "	1.14 mm	0.035 "	0.082 in	2.08 mm	Gold	Press-Fit	3.96 mm	0.156 in	Beryllium Copper	-55 °C	125 °C	1.27 mm	0.05 in	1.32 mm	0.052 in
TE Connectivity AMP Connectors 8134-HC-6P3LF	No Tail	80 Áin	2.03 Ám					0.058 in	1.47 mm	Tin	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	105 ░C	0.76 mm	0.03 in	0.97 mm	0.038 "	0.76 mm	0.51 mm	0.03 "	0.02 "
TE Connectivity AMP Connectors 8134-HC-8P3-LF	No Tail	80 Áin	2.03 Ám	0.64 mm	0.035 in		0.025 "	0.058 in	1.47 mm	Tin	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	105 ░C	0.76 mm	0.03 in	1.07 mm	0.042 in					0.64 mm	0.025 in	0.89 mm
TE Connectivity AMP Connectors 8134-HC-5P2	No Tail	24.8 µin	0.63 µm					0.041 in	1.04 mm	Gold	Press-Fit	2.39 mm	0.094 in	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in	0.66 mm	0.026 in	0.53 mm	0.41 mm	0.021 in	0.016 in				0.018 in	0.28 mm	0.46 mm	0.011 in
TE Connectivity AMP Connectors 8134-HC-12P3	No Tail	80 Áin	2.03 Ám	0.89 mm	0.045 "	1.14 mm	0.035 "	0.082 in	2.08 mm	Tin-Lead	Press-Fit	3.96 mm	0.156 in	Beryllium Copper	-55 °C	105 ░C	1.27 mm	0.05 in	1.32 mm	0.052 in
TE Connectivity AMP Connectors 8134-HC-6P3	No Tail							0.063 in	1.6 mm	Tin-Lead	Press-Fit	3.56 mm	0.14 "	Beryllium Copper	-55 °C	105 ░C	0.76 mm	0.03 in	0.97 mm	0.038 "	0.76 mm	0.51 mm	0.03 "	0.02 "								1.6 mm	0.063 in
TE Connectivity AMP Connectors 8134-HC-6P2	No Tail	24.8 µin	0.63 µm					0.058 in	1.47 mm	Gold	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in	0.97 mm	0.038 "	0.76 mm	0.51 mm	0.03 "	0.02 "
TE Connectivity AMP Connectors 8134-HC-8P2	No Tail	24.8 µin	0.63 µm	0.64 mm	0.035 in		0.025 "	0.058 in	1.47 mm	Gold	Press-Fit	3.45 mm	0.136 "	Beryllium Copper	-55 °C	125 °C	0.76 mm	0.03 in	1.07 mm	0.042 in					0.64 mm	0.025 in	0.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

8134 Series

Pin Receptacle Connector 0.020" ~ 0.030" (0.51mm ~ 0.76mm) No Tail Press-Fit
