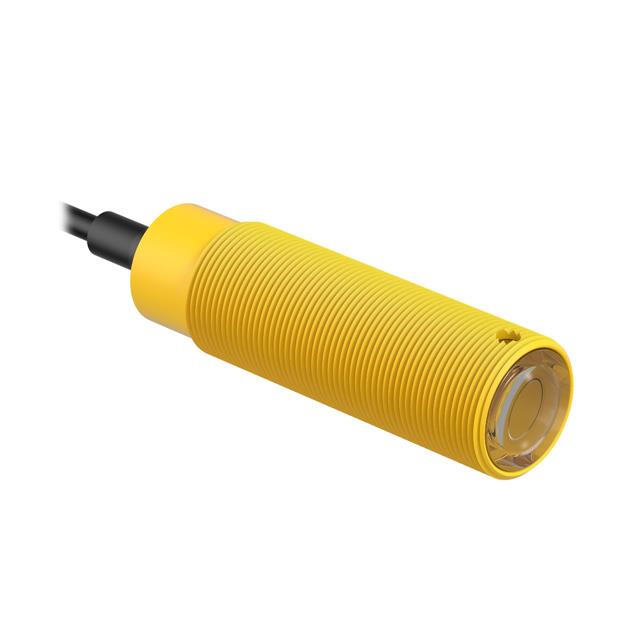

SM2A30PRLQDC

Active

BANNER ENGINEERING

SM30 SERIES: RECEIVER - FREQUENCY C PBT POLYESTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SM30 SERIES: RECEIVER - FREQUENCY C PBT POLYESTER

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Light Source	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Ingress Protection	Connection Method	Cable Length	Cable Length	Sensing Method
BANNER ENGINEERING SM2A30PRLNC W/30	SPST - Light-ON	Infrared	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	NEMA 6P IEC IP67	Cable	78.74 in	2 m	Through-Beam
BANNER ENGINEERING SM2A30SRLQD	SPST	LED	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	IP67 NEMA 6P	Connector			Through-Beam
BANNER ENGINEERING SM2A30PRLQDC	SPST - Light-ON	Infrared	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	IP67	Connector			Through-Beam
BANNER ENGINEERING SM2A30PRLNCQDC	SPST - Dark-ON	Infrared	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	IP67	Connector			Through-Beam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 288.00
Newark	Each	1	$ 288.00

General part information

Through-Beam Optical Sensor 492.13' (150m) SPST - Light-ON
